| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Color | |
| Configuration | |
| Current | |
| Forward Voltage | |
| Halogen Free | |
| Height (Max) | |
| Junction Temperature | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

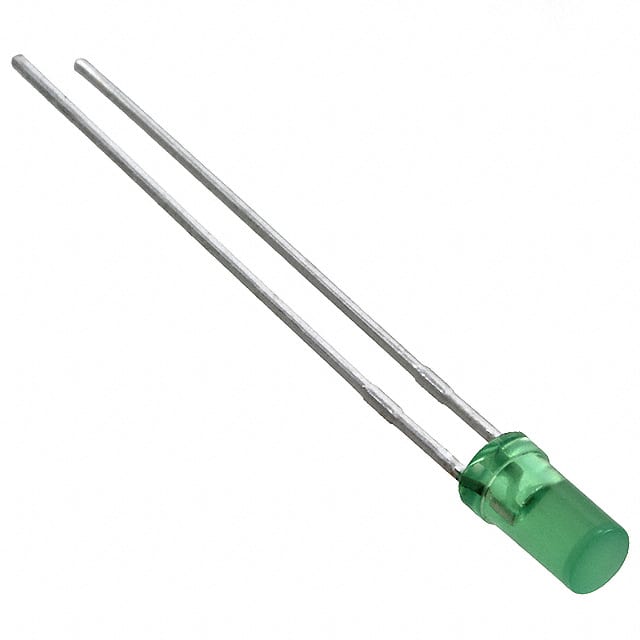

The Kingbright WP424GDT is a green, diffused T-1 (3mm) cylindrical LED lamp. It is constructed with Gallium Phosphide (GaP) for reliable green light emission. This LED features low power consumption, a reliable and rugged design, and a long solid-state lifespan. It is suitable for various applications including status indicators, illuminators, signage, and decorative lighting.
Key electrical characteristics include a typical forward voltage of 2.2V and a current rating of 20mA, with a peak forward current of 140mA. The peak emission wavelength is 565nm, and the dominant wavelength is 568nm, with a spectral bandwidth of 30nm. The luminous intensity is rated at 6mcd at 10mA, and the viewing angle is 100°.
Mechanically, the LED has a diffused green lens and a cylindrical shape with a flat top, measuring 3mm in diameter and a maximum height of 6.00mm. It is designed for Through Hole mounting and comes in a radial package. The LED is available on tape and reel, offering convenience for automated assembly processes.
Environmental compliance includes RoHS3 compliance and Halogen Free status. The operating temperature range is -40°C to +85°C, and the storage temperature is also -40°C to +85°C. The junction temperature maximum is 110°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical luminous intensity of the WP424GDT LED is 6 mcd at 10mA.
The typical forward voltage for the WP424GDT LED is 2.0V, with a maximum of 2.4V at 10mA.
The peak emission wavelength for the WP424GDT LED is 565nm.
The viewing angle of the WP424GDT LED is 100°.
The operating temperature range for the WP424GDT LED is -40°C to +85°C.
The WP424GDT LED is RoHS3 Compliant.
The WP424GDT LED is in a T-1 (3mm) radial package.
