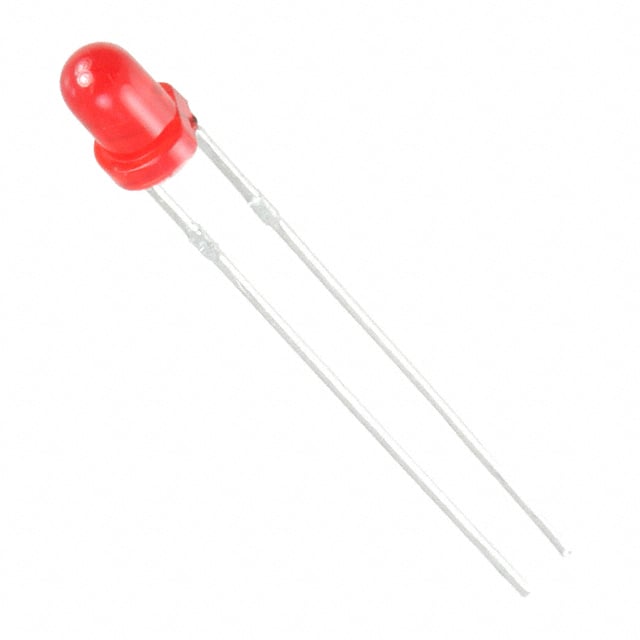

The Kingbright WP3A8HD is a solid-state lamp featuring a bright red light-emitting diode made with Gallium Phosphide. It comes in a popular T-1 diameter package with general-purpose leads, suitable for through-hole mounting.
This LED operates with a typical forward voltage of 2.25V at 20mA and provides a luminous intensity of 2.5mcd with a wide 50° viewing angle. The peak wavelength is 700nm, and the dominant wavelength is 635nm, with a spectral line half-width of 45nm. It has a capacitance of 40pF at 0V and 1MHz.
Designed for reliability and long life, the WP3A8HD has a maximum power dissipation of 62.5mW and a peak forward current rating of 130mA. The operating and storage temperature range is -40°C to +85°C. It is available on tape and reel for automated assembly processes.
The package dimensions are 3.00mm in diameter, with a maximum height of 5.00mm. The lens is red, diffused, round with a domed top, and measures 3mm, T-1 in size. Lead solder temperature is rated up to 260°C for 3-5 seconds.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the WP3A8HD LED is 2.25V at 20mA.
The typical luminous intensity of the WP3A8HD LED is 2.5mcd at 10mA.
The viewing angle of the WP3A8HD LED is 50°.
The peak wavelength of the WP3A8HD LED is 700nm.
The dominant wavelength of the WP3A8HD LED is 635nm.
The operating temperature range for the WP3A8HD LED is -40°C to +85°C.
The standard package quantity for the WP3A8HD LED is 2000 units.
