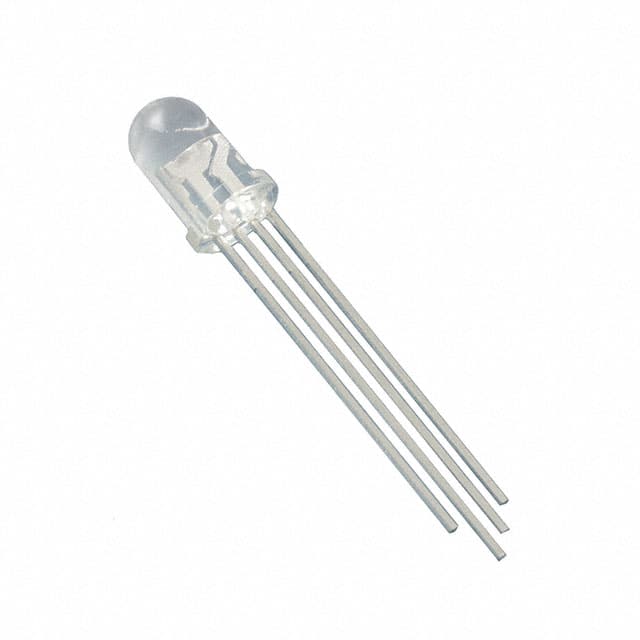

WP154A4SUREQBFZGC The Kingbright WP154A4SUREQBFZGC is a Through Hole mounted RGB LED Lamp in a T-1 3/4 package. It features distinct forward voltages for red, green, and blue light emission.
Mfr Part #:

WP154A4SUREQBFZGC

Available from 2 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright WP154A4SUREQBFZGC is a Through Hole mounted RGB LED Lamp in a T-1 3/4 package. It features distinct forward voltages for red, green, and blue light emission.
✓ Total Stock: 183 pcs
$ Price Range: $0.06

WP154A4SUREQBFZGC Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
146 pcs
On Request
146 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
37 pcs
On Request
37 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WP154A4SUREQBFZGC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Lens Type
Millicandela Rating
Mounting Type
Supplier Device Package
Supplier Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

WP154A4SUREQBFZGC Description

Short technical summary and product information.

This Kingbright WP154A4SUREQBFZGC is a discrete LED lamp designed for indication purposes. It offers Red, Green, and Blue (RGB) light output from a single T-1 3/4 package.



The LED features a Through Hole mounting type and a Common Cathode configuration. The typical forward voltage for red emission is 1.9V, while green and blue emissions operate at a typical forward voltage of 3.3V, all at a standard 20mA current.



Key optical characteristics include a typical luminous intensity of 400mcd for red, 1700mcd for green, and 900mcd for blue, with a viewing angle of 50°. The dominant wavelengths are 630nm for red, 525nm for green, and 465nm for blue. The lens is colorless and clear with a round, domed top.



Applications for this LED lamp include status indicators, illuminators, signage, and decorative lighting. Its solid-state reliability and low power consumption make it suitable for various electronic designs.

WP154A4SUREQBFZGC Quick Information

Product Type: LED Lamp
Canonical Name: Kingbright WP154A4SUREQBFZGC RGB LED Lamp
Subcategory: Discrete LED

WP154A4SUREQBFZGC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WP154A4SUREQBFZGC Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

WP154A4SUREQBFZGC Features

  • RGB LED lamp for versatile color output.
  • T-1 3/4 package with Through Hole mounting.
  • Distinct forward voltages for R, G, B emissions.
  • Typical luminous intensity: 400/1700/900 mcd.
  • 50° viewing angle for wide light distribution.

WP154A4SUREQBFZGC Applications

  • Ideal for status indicator functions.
  • Suitable for general illumination tasks.
  • Used in signage and display applications.
  • Applicable for decorative lighting projects.

WP154A4SUREQBFZGC FAQs

6 frequently asked questions generated from this part’s specifications.
What are the typical forward voltages for the WP154A4SUREQBFZGC LED?

The typical forward voltage is 1.9V for Red, 3.3V for Green, and 3.3V for Blue, all at 20mA.

What is the luminous intensity of the WP154A4SUREQBFZGC LED?

The typical luminous intensity is 400mcd for Red, 1700mcd for Green, and 900mcd for Blue.

What is the viewing angle of the WP154A4SUREQBFZGC LED?

The typical viewing angle is 50°.

What are the dominant wavelengths for the Red, Green, and Blue emitters in the WP154A4SUREQBFZGC?

The dominant wavelengths are 630nm for Red, 525nm for Green, and 465nm for Blue.

What type of package does the WP154A4SUREQBFZGC LED use?

The LED uses a T-1 3/4 package.

How is the WP154A4SUREQBFZGC LED mounted?

It is mounted using the Through Hole method.
