| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

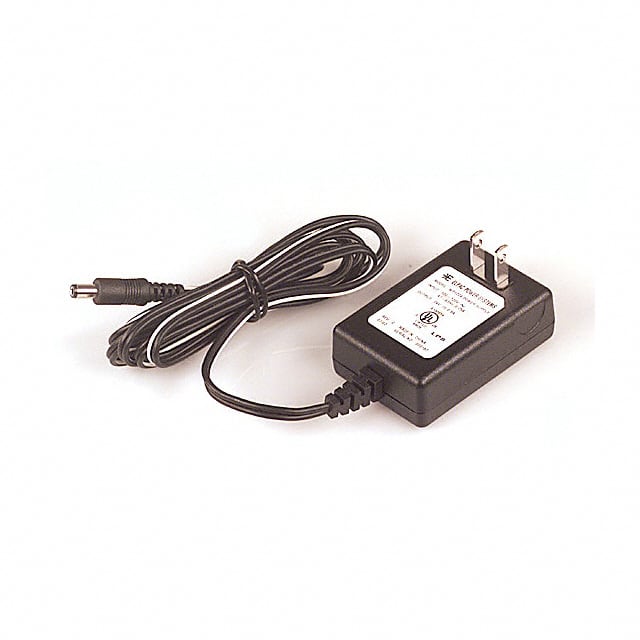

The Inventus Power WP1224-760 is an AC/DC wall mount adapter with a power rating of 12W and an output voltage of 24V. It features a current output of 500mA and utilizes a fixed blade input connector (NEMA 1-15P) suitable for North America.
The adapter has dimensions of 75.0mm x 49.5mm x 25.0mm and a positive center polarization. Its output connector is a barrel plug with specific dimensions (2.5mm I.D. x 5.5mm O.D. x 9.5mm). The operating temperature range is from 0°C to 40°C.
Designed for ITE (Commercial) applications, this adapter is a Class II, wall mountable unit. It complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
The nominal output voltage is 24V DC.
The output current rating is 500mA (0.5A).
The power rating is 12W.
The input connector is NEMA 1-15P (fixed blade).
The output is a barrel plug with 2.5mm inner diameter and 5.5mm outer diameter.
The operating temperature range is 0°C to 40°C.
The mounting type is Wall Mount.
