| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage |

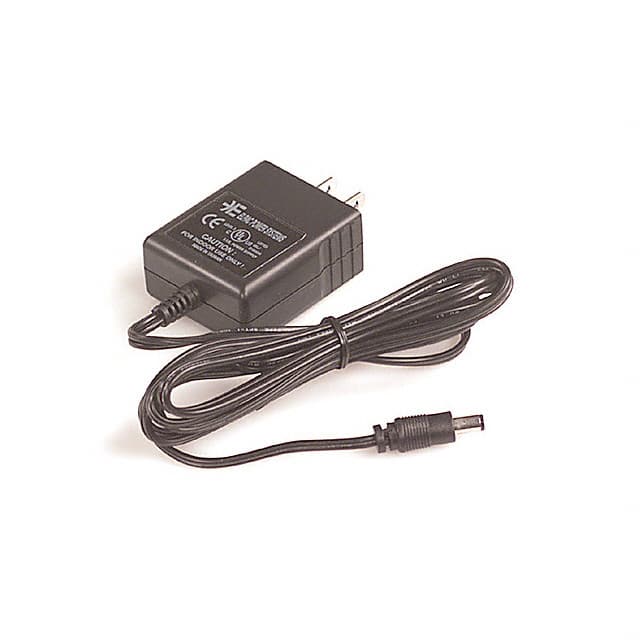

The Inventus Power WP0612-760 is an AC/DC wall mount adapter designed for commercial ITE applications. It delivers a stable 12V output with a maximum current of 500mA, providing a total power of 6W.
This adapter operates with an input voltage range of 100 to 240 VAC and features a fixed blade input connector (NEMA 1-15P). It has an efficiency rating of 75% and is designed for wall mounting in a Class II form factor. The output is delivered through a standard barrel plug with specific dimensions.
Operating within a temperature range of 0°C to 40°C, the WP0612-760 is suitable for various commercial environments. It is approved by CE for safety compliance. The adapter's positive center polarization ensures correct power delivery to connected devices.
100-240VAC.
12V at 500mA.
6W.
75%.
0°C to 40°C.
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm.
Wall mount (Class II).
