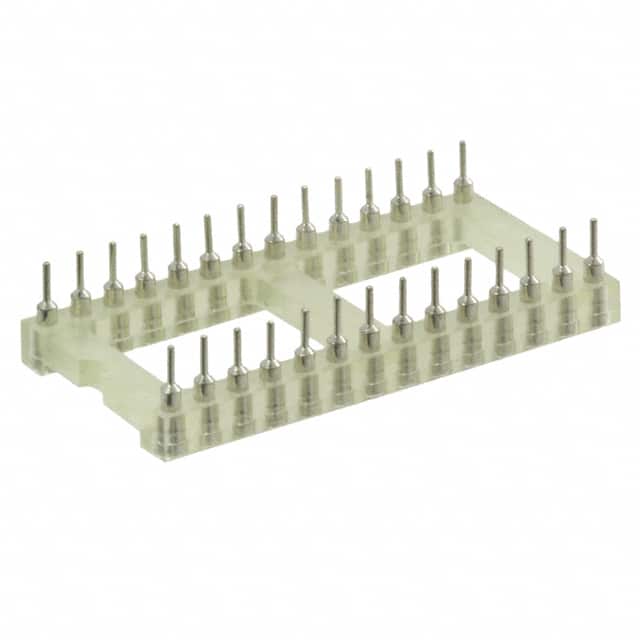

WMS-280Z 28 position DIP IC socket with 0.6" row spacing and 2.54mm pitch. Through hole mounting with tin plated beryllium copper contacts.
Mfr Part #:

WMS-280Z

Available from 1 distributors
Mfr Name: On Shore Technology Inc.
On Shore Technology Inc.
28 position DIP IC socket with 0.6" row spacing and 2.54mm pitch. Through hole mounting with tin plated beryllium copper contacts.
✓ Total Stock: 20 pcs
$ Price Range: $0.60

WMS-280Z Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WMS-280Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Contact Material
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions or Pins (Grid)
Operating Temperature
Pitch
Termination
Termination Style
Type
View Similar Products (0)

WMS-280Z Description

Short technical summary and product information.

The WMS-280Z is a 28 position DIP IC socket from On Shore Technology Inc. designed for through hole mounting. It features a 0.6" (15.24mm) row spacing and a standard 2.54mm (0.100") pitch, making it suitable for dual in-line package integrated circuits.



The socket uses beryllium copper contacts with a tin flash finish, providing reliable electrical connections. The open frame design allows for airflow and easy inspection of solder joints. The wash away feature enables cleaning of flux residues after soldering.



This socket operates over a temperature range of -40°C to 105°C, suitable for a variety of industrial and commercial applications. The solder termination style ensures secure attachment to printed circuit boards.

WMS-280Z Quick Information

Product Type: IC Socket
Series: WMS
Canonical Name: 28 Position DIP Socket, 0.6" Row Spacing, Through Hole, Tin Contact Finish
Subcategory: DIP Socket

WMS-280Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WMS-280Z Estimated Pricing

Qty Low High
5,000+ $0.60 $0.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

WMS-280Z Features

  • 28 position DIP socket with 0.6" row spacing.
  • 2.54mm pitch for standard IC packages.
  • Tin plated beryllium copper contacts.
  • Through hole solder termination style.
  • Open frame design with wash away feature.

WMS-280Z Applications

  • Used for prototyping and production IC sockets.
  • Suitable for 28 pin DIP integrated circuits.
  • Ideal for applications requiring washable sockets.

WMS-280Z FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the WMS-280Z have?

The WMS-280Z has 28 positions arranged as 2 rows of 14.

What is the pitch of this DIP socket?

The pitch is 2.54mm (0.100").

What is the mounting type for the WMS-280Z?

The mounting type is through hole.

What is the contact finish on this socket?

The contact finish is tin (flash).

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

What features does this socket have?

It features an open frame design and is wash away capable.
