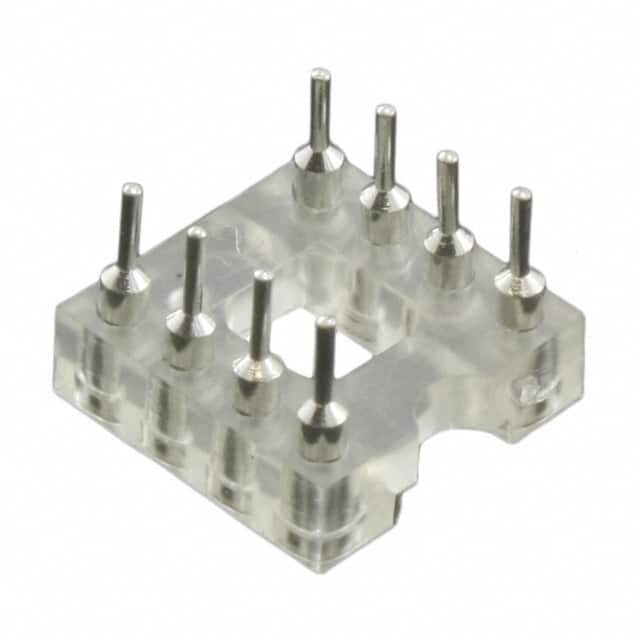

WMS-080Z 8-position DIP IC socket with 0.3" (7.62mm) row spacing, 2.54mm pitch, through-hole solder termination, beryllium copper contacts with tin flash finish.
Mfr Part #:

WMS-080Z

Available from 1 distributors
Mfr Name: On Shore Technology Inc.
On Shore Technology Inc.
8-position DIP IC socket with 0.3" (7.62mm) row spacing, 2.54mm pitch, through-hole solder termination, beryllium copper contacts with tin flash finish.
✓ Total Stock: 36 pcs
$ Price Range: $0.19

WMS-080Z Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
36 pcs
On Request
36 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WMS-080Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Contact Material
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions or Pins (Grid)
Operating Temperature
Pitch
Storage Temperature
Termination
Termination Style
Type
View Similar Products (0)

WMS-080Z Description

Short technical summary and product information.

The On Shore Technology Inc. WMS-080Z is an 8-position DIP IC socket designed for through-hole mounting. It features a 2.54mm (0.100") pitch and 0.3" (7.62mm) row spacing, making it suitable for standard 8-pin DIP integrated circuits.



The socket employs an open frame, wash away construction. Contacts are made of beryllium copper with a tin flash finish. Termination is solder style, compatible with traditional through-hole assembly processes.



Operating temperature range is -40°C to 105°C, accommodating a wide variety of industrial and commercial environments. The open frame design allows for easier cleaning and visual inspection after soldering.

WMS-080Z Quick Information

Product Type: IC Socket
Series: WMS
Canonical Name: IC Socket, DIP, 0.3" (7.62mm) Row Spacing, 8 Positions, Through Hole, Tin Flash
Subcategory: DIP Socket

WMS-080Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

WMS-080Z Estimated Pricing

Qty Low High
5,000+ $0.19 $0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

WMS-080Z Features

  • 8 positions with 2.54mm pitch spacing.
  • Through-hole solder termination style.
  • Beryllium copper contacts, tin flash.
  • Open frame wash away design.
  • Wide -40°C to 105°C temperature range.

WMS-080Z Applications

  • Sockets for 8-pin DIP IC packages.
  • Prototyping and production PCB assembly.
  • Industrial and commercial electronic modules.

WMS-080Z FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the WMS-080Z DIP socket have?

8 positions (2 x 4).

What is the pitch of the WMS-080Z socket?

2.54mm (0.100").

What is the row spacing of this DIP socket?

0.3" (7.62mm).

What is the mounting type for the WMS-080Z?

Through hole, solder termination.

What is the operating temperature range of this socket?

-40°C to 105°C.

What contact material and finish are used?

Beryllium copper contacts with tin flash finish.

What design features does the WMS-080Z include?

Open frame wash away design.
