| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,200 pcs
|
3200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating |

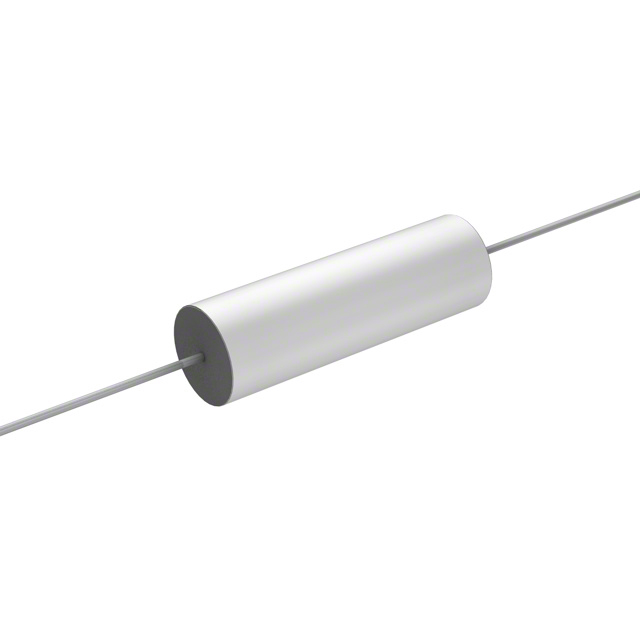

The WMF6S22K is a polyester film capacitor from Cornell Dubilier Electronics (CDE), part of the Type WMF series. It offers a capacitance of 0.022 µF with a ±10% tolerance and a DC voltage rating of 630 V. The capacitor is constructed with a polyester dielectric and film/foil configuration, providing non-inductive wound sections and excellent moisture resistance.
This axial-leaded component is designed for through-hole mounting with PC pin terminations. It operates over a temperature range of -55°C to 125°C, with full rated voltage at 85°C and linear derating to 50% at 125°C. The case is made of UL510 polyester tape wrap with UL94V-0 epoxy fill, ensuring robust mechanical and flame-retardant properties.
Typical applications include general purpose use in commercial and industrial circuits, particularly where high peak currents and low inductance are required. The capacitor measures 0.335" diameter by 0.937" length (8.50 mm x 23.80 mm).
| Qty | Low | High |
|---|---|---|
| 1,000+ | $1.07 | $1.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 0.022 µF.
The DC voltage rating is 630 V.
The capacitance tolerance is ±10%.
The dielectric material is polyester.
The package type is axial leaded, through-hole mounting.
The operating temperature range is -55°C to 125°C.
The dissipation factor is 0.75% maximum at 25°C and 1 kHz.
