| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating |

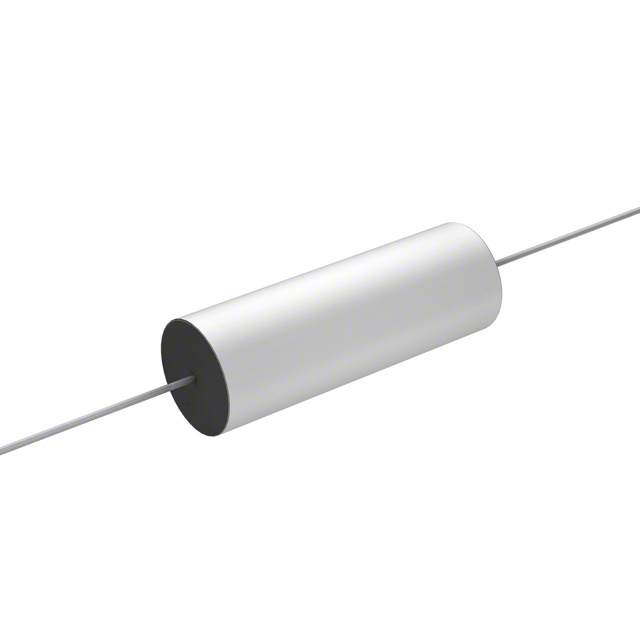

The WMF2P22K is a 0.22 µF polyester film/foil capacitor from Cornell Dubilier Electronics (CDE), rated at 250 VDC with ±10% tolerance (K grade). It operates over a temperature range of -55°C to 125°C, with linear derating to 50% rated voltage at 125°C. Key electrical characteristics include a dissipation factor of 0.75% maximum at 25°C and 1 kHz, insulation resistance of 100,000 MΩ minimum (or 30,000 MΩ·µF product), and dielectric strength of 250% rated voltage for life test conditions.\n\nDesigned for high peak current and high dV/dt applications, this non-inductive wound capacitor offers low inductance and excellent moisture resistance. It is suitable for commercial and industrial electronic circuits requiring reliable film capacitor performance.\n\nThe component features an axial lead package (through hole mounting) with tin-plated copper-clad steel terminals. The case is UL510 polyester tape wrap with UL94V-0 epoxy fill, providing robust mechanical and environmental protection.
| Qty | Low | High |
|---|---|---|
| 100+ | $2.30 | $2.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.22 µF.
250 VDC, with derating to 50% at 125°C.
Polyester film/foil.
±10% (K standard), with optional ±5% (J) and ±20% (M).
Axial lead, through hole, with polyester tape wrap case and epoxy fill.
0.75% maximum at 25°C, 1 kHz.
-55°C to 125°C.
