| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
275 pcs
|
275 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Case Material | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Length | |
| Life Test | |
| Mounting Type | |
| Operating Temperature | |
| Resin Material | |
| Tape & Reel | |
| Terminal Material | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating |

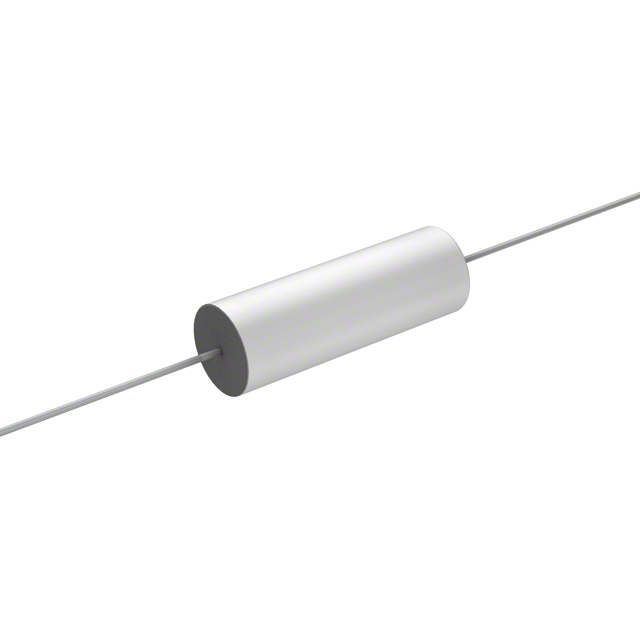

The Cornell Dubilier WMF1P15K-F is a Type WMF polyester film capacitor with a capacitance of 0.15 µF and a voltage rating of 100 VDC. It has a capacitance tolerance of ±10% and is constructed with a film/foil, non-inductive wound section. The capacitor is housed in an axial leaded package with a diameter of 8.60 mm and a length of 23.80 mm.
This component is designed for general purpose applications and offers a dissipation factor of 0.75% maximum at 25°C and 1 kHz. The insulation resistance is a minimum of 100,000 MΩ. It is rated for an operating temperature range of -55°C to 125°C, with full rated voltage at 85°C and linear derating to 50% at 125°C.
The case is made of UL510 polyester tape wrap, and the ends are sealed with UL94V-0 epoxy fill. The terminal material is tin plated copper-clad steel. This capacitor is RoHS3 compliant and has an MSL rating of 1 (Unlimited).
The capacitance is 0.15 µF with a tolerance of ±10%.
The voltage rating is 100 VDC.
The dielectric material is polyester.
The package is axial and the mounting type is through hole.
The operating temperature range is -55°C to 125°C.
The dissipation factor is 0.75% maximum at 25°C and 1 kHz.
The insulation resistance is a minimum of 100,000 MΩ.
