| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating |

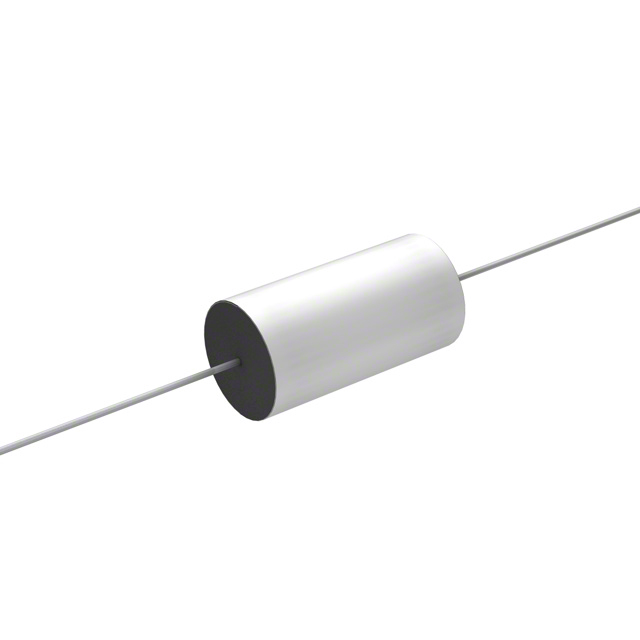

The Cornell Dubilier WMF05P33K is a Type WMF polyester film/foil capacitor with axial leads. It offers a capacitance of 0.33 µF with ±10% tolerance and a rated voltage of 50 VDC. The capacitor features a very high dV/dt of 1500 V/µs and high peak current capability, making it suitable for applications with high peak currents. It has a dissipation factor of 0.75% maximum at 25°C and 1 kHz, and insulation resistance of 30,000 MΩ·µF minimum. The operating temperature range is -55°C to 125°C, with linear derating above 85°C. The capacitor is housed in an axial package with a body diameter of 10.9 mm and length of 20.6 mm, with 0.6 mm diameter lead wires. It is a through-hole component with PC pin termination. The dielectric material is polyester, and the case is UL510 polyester tape wrap with UL94V-0 epoxy fill. The part is designed for general purpose applications and has a life test rating of 500 hours at 85°C at 125% rated voltage.
| Qty | Low | High |
|---|---|---|
| 200+ | $1.56 | $1.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.33 µF.
50 VDC.
Polyester.
±10%.
Axial leaded through-hole.
-55°C to 125°C.
1500 V/µs.
