| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,708 pcs
|
2708 pcs | On Request | 1 | On Request | On Request | 629 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Tape and Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating |

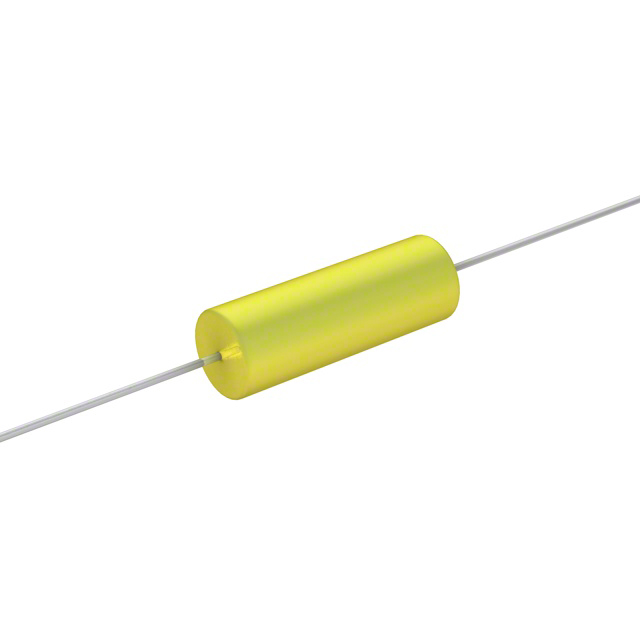

The WMC2S22K-F is a 0.022 µF polyester film/foil capacitor rated for 250 VDC. It features a ±10% tolerance and is designed for through-hole mounting with an axial package. The capacitor is constructed with extended foil and polyester film, providing a non-inductive design suitable for high pulse and high dV/dt applications. It has a dissipation factor of 0.75% maximum at 25°C and 1 kHz, and an insulation resistance of 30,000 MΩ·µF minimum. The operating temperature range is -55°C to 125°C. The body dimensions are 0.228" diameter by 0.657" length (5.80mm x 16.70mm) with tinned copper-clad steel leads. This capacitor is RoHS3 compliant and has an MSL of 1 (unlimited). It is available on tape and reel for automatic insertion.
0.022 µF.
250 VDC.
Polyester.
±10%.
Axial through-hole.
-55°C to 125°C.
0.75% maximum at 25°C and 1 kHz.
