| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Body Length | |
| Capacitance | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor | |
| Insulation Resistance (Minimum @ Minimum) | |
| Insulation Resistance (Typical @ Typical) | |
| Lead Diameter | |
| Lead Length | |
| Lead Style | |
| Life Test | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| dV/dt Rating |

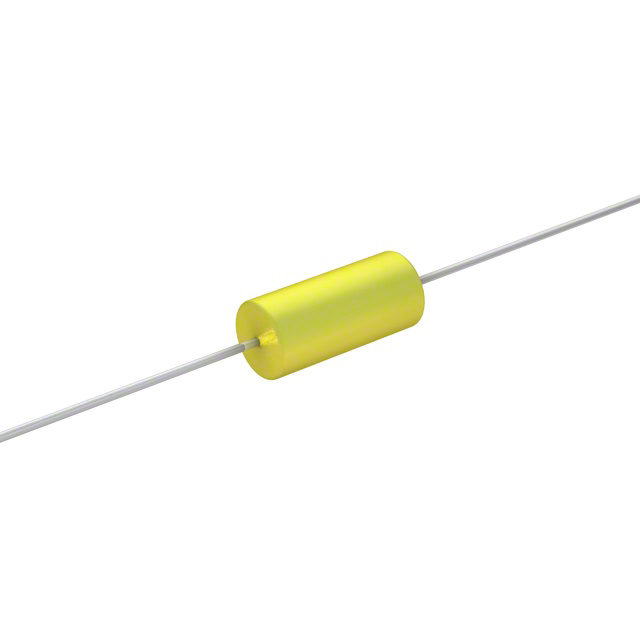

The Cornell Dubilier WMC08S1K-F is a miniature axial-leaded polyester film/foil capacitor designed for automatic insertion in printed circuit boards. It offers a capacitance of 0.01 µF (10000 pF) with a ±10% tolerance and a DC voltage rating of 80V.
This capacitor features a non-inductive extended foil construction with a polyester dielectric, providing excellent pulse handling capability with a maximum dV/dt rating of 5000 V/µs. The dissipation factor is limited to 0.75% maximum at 25°C and 1 kHz, and insulation resistance is typically 30,000 MΩ·µF with a minimum of 100,000 MΩ.
The WMC08S1K-F is housed in an axial package with a body diameter of 4.7 mm and length of 10.3 mm. It has tinned copper-clad steel leads with a diameter of 0.5 mm (No. 24 AWG) and a minimum lead length of 38 mm. The operating temperature range is -55°C to 125°C, with full rated voltage at 85°C and linear derating to 50% at 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.23 | $3.23 |
| 10+ | $2.25 | $2.25 |
| 50+ | $1.87 | $1.87 |
| 100+ | $1.75 | $1.75 |
| 500+ | $1.54 | $1.54 |
| 1,000+ | $1.48 | $1.48 |
| 2,500+ | $1.42 | $1.42 |
| 5,000+ | $1.38 | $1.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 0.01 µF (10000 pF) with a tolerance of ±10%.
The DC voltage rating is 80V.
The dielectric material is polyester (film/foil construction).
The operating temperature range is -55°C to 125°C. Full rated voltage is applied at 85°C, with linear derating to 50% at 125°C.
The package is axial, and the mounting type is through hole with PC pin termination.
The maximum dV/dt rating is 5000 V/µs for body lengths up to 0.437 inches.
The maximum body diameter is 4.7 mm and the maximum body length is 10.3 mm.
