WM9712CLGEFL/RV The Cirrus Logic Inc. WM9712CLGEFL/RV is an Audio, AC '97 Interface CODEC. It features 12-bit resolution and operates over a temperature range of -25°C to 85°C.
Mfr Part #:

WM9712CLGEFL/RV

Available from 1 distributors
Mfr Name: Cirrus Logic Inc.
Cirrus Logic Inc.
The Cirrus Logic Inc. WM9712CLGEFL/RV is an Audio, AC '97 Interface CODEC. It features 12-bit resolution and operates over a temperature range of -25°C to 85°C.
✓ Total Stock: 68 pcs
$ Price Range: $2.72

WM9712CLGEFL/RV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
68 pcs
On Request
68 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WM9712CLGEFL/RV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Interface
Lead Spacing
Mounting Type
Number of ADCs
Operating Temperature
Resolution (Bits)
S
Sigma Delta
Supplier Device Package
Type
Voltage
View Similar Products (0)

WM9712CLGEFL/RV Description

Short technical summary and product information.

The Cirrus Logic Inc. WM9712CLGEFL/RV is an integrated circuit belonging to the CODEC category, specifically designed for AC'97 audio interfaces. This component offers 12-bit resolution for audio data processing.



Key electrical specifications include analog and digital supply voltages ranging from 1.8V to 3.6V. It supports 2 ADCs and 2 DACs with a typical Signal-to-Noise Ratio of 92 dB for ADCs and 94 dB for DACs. The device operates within a temperature range of -25°C to 85°C.

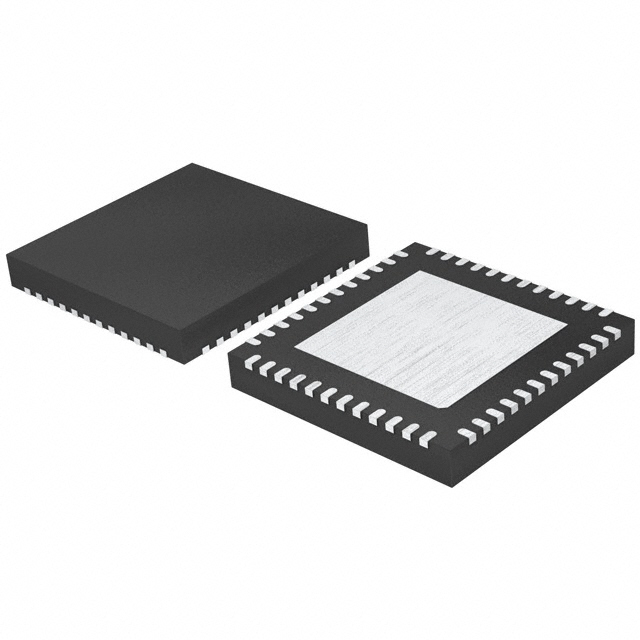

Packaged in a 48-QFN (7x7) form factor, the WM9712CLGEFL/RV is designed for surface mount applications. The supplier device package is a 48-VFQFN exposed pad, and it is available on tape & reel or cut tape with a standard package quantity of 2200 units.

WM9712CLGEFL/RV Quick Information

Product Type: CODEC
Canonical Name: WM9712CLGEFL/RV Audio, AC '97 Interface CODEC
Subcategory: CODECs

WM9712CLGEFL/RV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WM9712CLGEFL/RV Estimated Pricing

Qty Low High
1+ $2.72 $2.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

WM9712CLGEFL/RV Features

  • 12-bit resolution for audio processing.
  • AC'97 audio interface standard.
  • Dual ADC and DAC channels.
  • Wide operating voltage range.
  • Surface mount 48-QFN package.

WM9712CLGEFL/RV Applications

  • Used in consumer audio devices
  • Suitable for multimedia systems
  • Ideal for communication equipment
  • Designed for compact electronic products

WM9712CLGEFL/RV FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resolution of the WM9712CLGEFL/RV CODEC?

The WM9712CLGEFL/RV CODEC has a resolution of 12 bits.

What is the operating temperature range for this CODEC?

The operating temperature range for the WM9712CLGEFL/RV is -25°C to 85°C.

What type of interface does the WM9712CLGEFL/RV use?

This CODEC uses the AC'97 interface.

What are the supply voltage requirements for the WM9712CLGEFL/RV?

The analog and digital supply voltages range from 1.8V to 3.6V.

What package type is the WM9712CLGEFL/RV supplied in?

The WM9712CLGEFL/RV is supplied in a 48-QFN (7x7) package.
