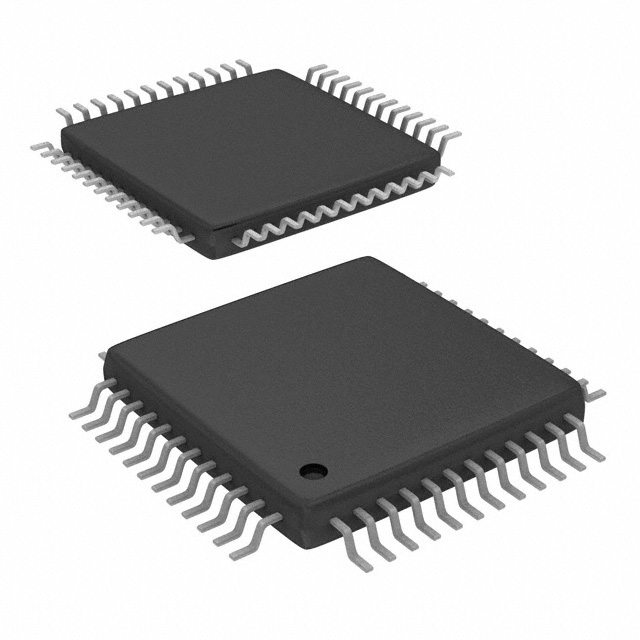

WM8776SEFT/RV The WM8776SEFT/RV is a high-performance stereo audio CODEC from Cirrus Logic Inc. It features a 24-bit resolution, 5-channel input multiplexer, and supports sampling rates up to 192kHz for DAC and 96kHz for ADC.
Mfr Part #:

WM8776SEFT/RV

Available from 1 distributors
Mfr Name: Cirrus Logic Inc.
Cirrus Logic Inc.
The WM8776SEFT/RV is a high-performance stereo audio CODEC from Cirrus Logic Inc. It features a 24-bit resolution, 5-channel input multiplexer, and supports sampling rates up to 192kHz for DAC and 96kHz for ADC.
✓ Total Stock: 2,200 pcs
$ Price Range: $2.72

WM8776SEFT/RV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
2,200 pcs
On Request
2200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WM8776SEFT/RV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Interface
Dynamic Range, ADCs
Lead Spacing
Mounting Type
Number of ADCs
Operating Temperature
Resolution (Bits)
S
Sigma Delta
Supplier Device Package
Type
Voltage
View Similar Products (0)

WM8776SEFT/RV Description

Short technical summary and product information.

The Cirrus Logic Inc. WM8776SEFT/RV is a 24-bit, 192kHz stereo audio CODEC designed for surround sound processing in home hi-fi and audio-visual equipment. It integrates a multi-bit sigma-delta ADC with a five-channel input mixer, offering programmable gain control and automatic level control for each ADC channel.



The device also includes a multi-bit sigma-delta DAC supporting digital audio input word lengths from 16 to 32 bits and sampling rates from 32kHz to 192kHz. The DAC features an input mixer for mixing external analog signals and provides stereo headphone and line outputs with volume controls. Independent sample rates for ADC and DAC are supported.



Connectivity is managed via I2S, left justified, right justified, or DSP formats, controlled through a 2 or 3-wire serial interface. The WM8776SEFT/RV is housed in a 48-pin TQFP package and operates with analog supplies from 2.7V to 5.5V and digital supplies from 2.7V to 3.6V.



Key performance metrics include a 108dB SNR for the DAC and 102dB SNR for the ADC (both 'A' weighted @ 48kHz). The operating temperature range is -25°C to 85°C, and it is suitable for surface mount applications.

WM8776SEFT/RV Quick Information

Product Type: CODEC
Canonical Name: WM8776SEFT/RV Stereo Audio CODEC with 5 Channel Input Multiplexer
Subcategory: Interface

WM8776SEFT/RV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WM8776SEFT/RV Estimated Pricing

Qty Low High
1+ $2.72 $2.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

WM8776SEFT/RV Features

  • 24-bit stereo audio CODEC with 5-channel input.
  • High SNR: 108dB DAC, 102dB ADC.
  • Supports sampling rates up to 192kHz.
  • Configurable data interfaces (I2S, SPI).
  • Surface mount 48-TQFP package.

WM8776SEFT/RV Applications

  • Ideal for surround sound processing.
  • Suitable for home hi-fi systems.
  • Used in audio visual equipment.
  • Designed for DVD-RW applications.

WM8776SEFT/RV FAQs

7 frequently asked questions generated from this part’s specifications.
What is the DAC sampling frequency range for the WM8776SEFT/RV?

The DAC sampling frequency range is 32kHz to 192kHz.

What is the ADC sampling frequency range for the WM8776SEFT/RV?

The ADC sampling frequency range is 32kHz to 96kHz.

What is the typical dynamic range for the ADCs and DACs?

The typical dynamic range is 102dB for the ADCs and 108dB for the DACs.

What is the resolution in bits for this CODEC?

The resolution is 24 bits.

What are the supply voltage requirements for the WM8776SEFT/RV?

It requires analog supply voltages from 2.7V to 5.5V and digital supply voltages from 2.7V to 3.6V.

What is the operating temperature range?

The operating temperature range is -25°C to 85°C.

What package type is the WM8776SEFT/RV available in?

It is available in a 48-TQFP package suitable for surface mounting.
