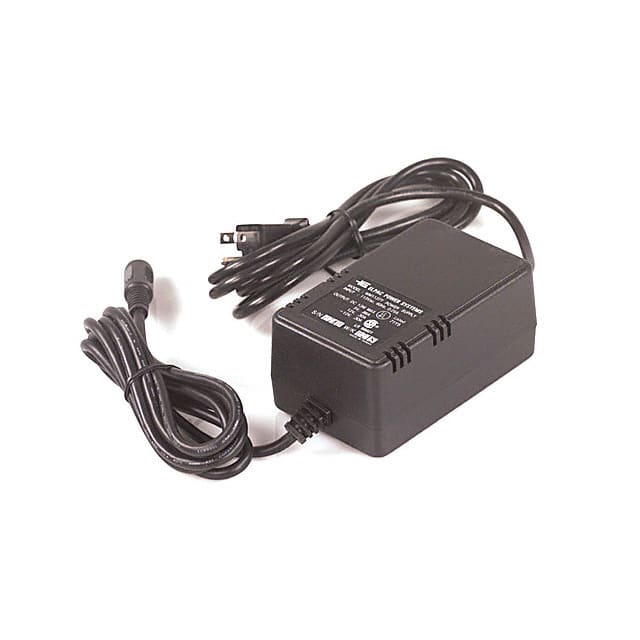

This AC/DC desktop adapter from Inventus Power, part number WM113TT, delivers a total of 12 watts of power. It provides multiple output voltages including +5VDC, +12VDC, and -12VDC, with corresponding current ratings of 0.86A, 0.3A, and 0.3A respectively. The adapter utilizes a NEMA 1-15P input connector for North American regions and a DIN 5-pin output connector.
Designed for ITE (Commercial) applications, this adapter operates within a temperature range of 0°C to 40°C. Its desktop (Class II) form factor makes it suitable for various electronic equipment setups. The unit is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
This power supply is well-suited for powering devices that require stable, regulated DC power. Its multi-voltage output capability offers flexibility for different component needs within a system.
100-240 VAC.
+5 VDC, +12 VDC, and -12 VDC.
+5 V at 0.86 A, +12 V at 0.3 A, and -12 V at 0.3 A.
12 W.
0°C to 40°C.
Desktop (Class II).
NEMA 1-15P input and 5-pin DIN output.
