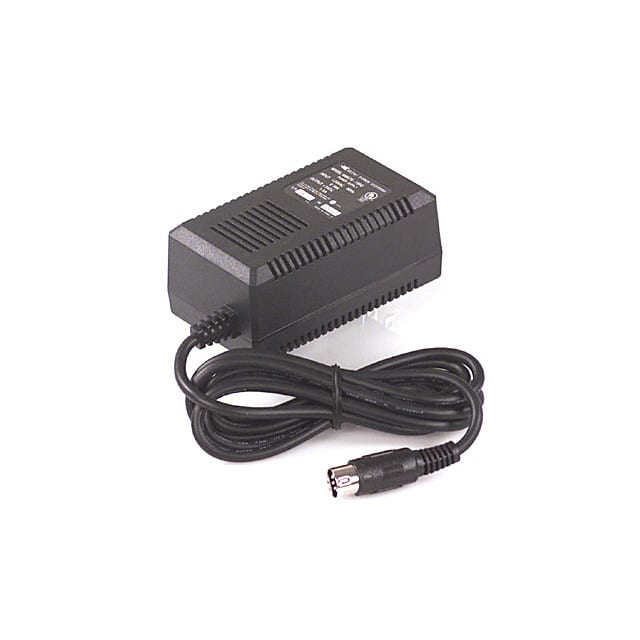

The Inventus Power WM075-1950-D5 is a fully regulated AC/DC wall mount adapter designed for ITE (Commercial) applications in North America. This adapter operates with a 120VAC input at 60Hz and provides a stable 5V output at 1.5A, delivering a total of 7.5W.
Key electrical specifications include a combined regulation of ±5% and a set point regulation of ±3% at 60% load. The ripple and noise are kept to a minimum at ±0.5% Vp-p. The unit operates within an environmental temperature range of 0°C to 40°C and meets FCC class B and CISPR 22 class B EMI standards.
Mechanically, the WM075-1950-D5 features a fully enclosed plastic case and a NEMA 1-15P input connector. The output is delivered via a 5-pin DIN connector. Safety certifications include UL1012 and CSA 22.2 #223, making it suitable for various commercial electronic devices.
120VAC at 60Hz.
5V DC at 1.5A.
7.5W.
0°C to 40°C.
UL1012, CSA 22.2 #223, and UL1950.
Wall mount (Class II).
DIN, 5 Pin with positive center polarity.
