WLR089U0-I/RM The Microchip Technology WLR089U0-I/RM is a LoRa RF transceiver module operating from 863MHz to 928MHz. It offers a data rate of 1Mbps and a sensitivity of -136dBm.
Mfr Part #:

WLR089U0-I/RM

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology WLR089U0-I/RM is a LoRa RF transceiver module operating from 863MHz to 928MHz. It offers a data rate of 1Mbps and a sensitivity of -136dBm.
✓ Total Stock: 6,200 pcs
$ Price Range: $6.06

WLR089U0-I/RM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
6,200 pcs
On Request
6200 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WLR089U0-I/RM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Type
Current
Data Rate
Frequency
Memory Size
Mounting Type
Operating Temperature
Power
Protocol
Sensitivity
Serial Interfaces
Storage Temperature
Tape & Reel
Voltage
View Similar Products (0)

WLR089U0-I/RM Description

Short technical summary and product information.

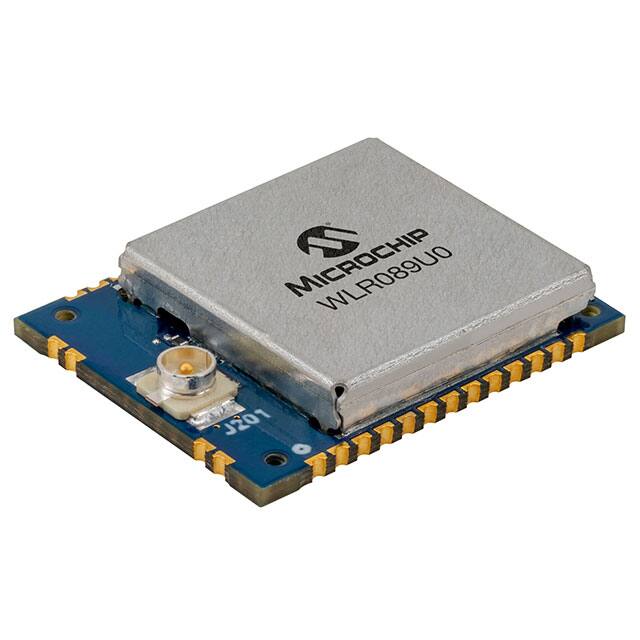

This Microchip Technology WLR089U0-I/RM is an RF transceiver module designed for long-range LoRa applications. It operates within the 863MHz to 928MHz frequency band, supporting a data rate of up to 1Mbps. The module features a sensitivity of -136dBm and an output power of 18.5dBm, making it suitable for extended communication ranges.



With an operating voltage range of 1.8V to 3.5V and a current consumption of 12.64mA, this module is designed for power-efficient operation. It includes 256kB Flash and 8kB SRAM memory. The module supports various serial interfaces including ADC, GPIO, I²C, PCM, SPI, and USART, providing flexibility for integration into different systems.



The WLR089U0-I/RM is a surface mount module with a U.FL antenna connector, though the antenna is not included. It operates across a wide temperature range of -40°C to 85°C, ensuring reliability in various environmental conditions. The module is RoHS3 compliant and has an MSL of 1.

WLR089U0-I/RM Quick Information

Product Type: RF Transceiver Module
Canonical Name: Microchip Technology WLR089U0-I/RM RF Transceiver Module
Subcategory: RF Transceiver Modules and Modems

WLR089U0-I/RM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WLR089U0-I/RM Estimated Pricing

Qty Low High
1+ $6.06 $6.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

WLR089U0-I/RM Features

  • Long range LoRa communication module.
  • Operates at 863MHz to 928MHz frequency.
  • High sensitivity of -136dBm.
  • Supports 1Mbps data rate.
  • Surface mount module with U.FL connector.

WLR089U0-I/RM Applications

  • Ideal for IoT and M2M applications.
  • Suitable for remote sensor networks.
  • Used in smart city infrastructure.
  • Enables long-distance wireless links.

WLR089U0-I/RM FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the WLR089U0-I/RM module?

The operating voltage range is 1.8V to 3.5V.

What is the operating temperature range of this RF transceiver module?

The module operates in a temperature range of -40°C to 85°C.

What protocol does the WLR089U0-I/RM module use?

This module uses the LoRa protocol.

What is the data rate for the WLR089U0-I/RM?

The data rate is 1Mbps.

What is the sensitivity of the WLR089U0-I/RM module?

The sensitivity is -136dBm.

What type of mounting is required for this module?

It requires surface mount type.
