| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Relative Humidity | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

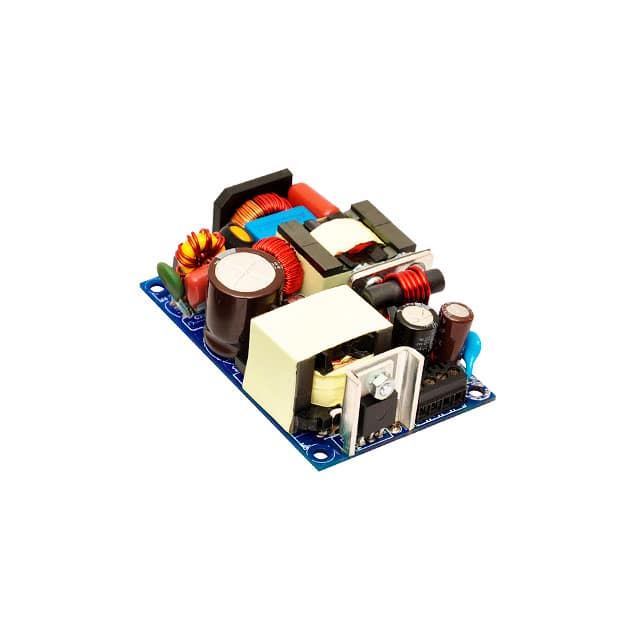

The EOS Power WLP75-1002-II is an open frame AC to DC converter designed for industrial applications. It delivers a continuous output power of 75W with a single output voltage of 15V and a maximum current of 5A. The unit accepts a universal input voltage range of 85-264 VAC, making it suitable for global use.
Key electrical specifications include efficiencies up to 90% and active PFC for improved power factor. It operates within a wide temperature range of -40°C to 70°C with derating. The converter includes features such as adjustable output, standby output, and over-voltage protection.
With dimensions of 3.00" L x 2.00" W x 1.00" H, this power supply is designed for chassis mounting. It meets safety standards including IEC/UL62368-1 and is approved by agencies like CB, CCC, CE, cUL, NEMKO, and UL. The MTBF is rated at 2.00 million hours.
This converter is suitable for ITE (Commercial) applications requiring a reliable and compact power solution.
The WLP75-1002-II provides a fixed 15V DC output capable of delivering up to 5A of continuous current.
Yes, it accepts an input voltage range of 85 to 264 VAC or 390 VDC for worldwide compatibility.
The unit is rated for continuous operation between -40°C and 70°C, with derating applied above 50°C.
It comes in an open-frame chassis-mount configuration measuring 76.2mm by 50.8mm by 25.4mm.
The converter provides 4000VDC isolation between the input and output terminals for enhanced safety.
It includes over-current, over-voltage, and short-circuit hiccup mode protection to safeguard connected loads.
