| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Relative Humidity | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

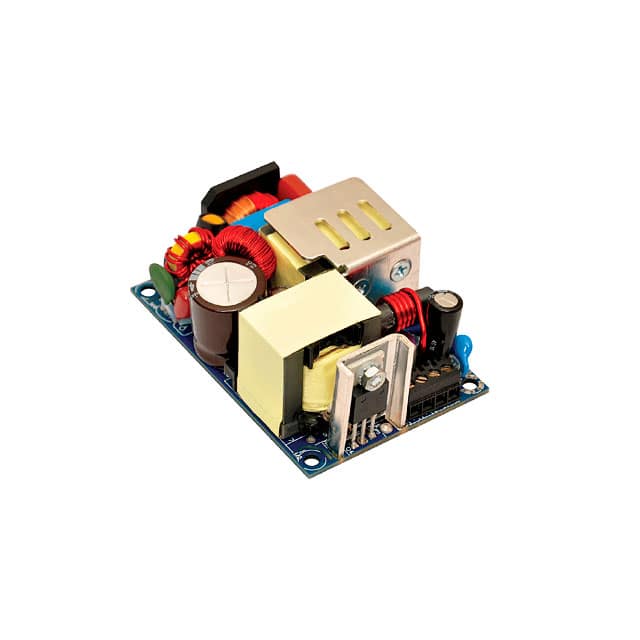

The EOS Power WLP120-1304-II is a 100W AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85-264 VAC and features a 24V output.
Key electrical specifications include an efficiency of 91% and active PFC for improved power factor. The converter offers adjustable output voltage with +/-3% regulation and load regulation of +/-1%. It is protected against over current and over voltage conditions.
This open frame unit has a compact footprint with dimensions of 76.2mm x 50.8mm x 30.0mm. It is designed for chassis mounting and operates within a wide temperature range of -40°C to 70°C. The MTBF is rated at over 3 million hours.
Compliance includes CB, CE, cUL, NEMKO, and UL approvals, adhering to standard 62368-1. It also features RoHS3 compliance and an MSL rating of 1.
The converter provides a regulated 48V DC output.
The unit ships in bulk packaging and utilizes a chassis mount configuration.
The device operates reliably between -40°C and +70°C.
The converter achieves 93% efficiency when operating at 48V.
It offers 3000VDC input-to-output isolation and 2500VDC input-to-ground isolation.
The chassis measures 76.2mm in length, 50.8mm in width, and 30.0mm in height.
