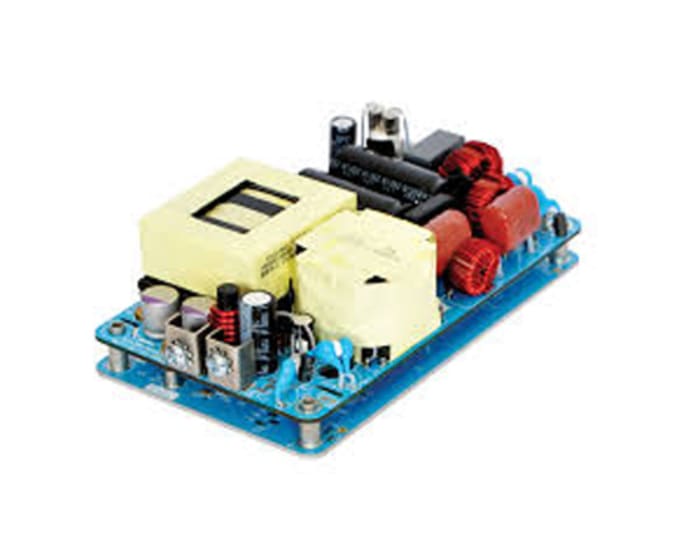

The EOS Power WLC550-1048 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It provides a stable 48V output at 3.13A, delivering up to 150W of power, with the capability to reach 550W with forced air cooling.
This power supply operates with high efficiency, up to 92%, and features a wide input voltage range from 90V ac to 390V ac, supporting universal input. Key features include adjustable output, Power Factor Correction (PFC), and a standby output, making it versatile for various system designs. The operating temperature range is -40°C to 70°C.
Measuring 127mm x 76.2mm x 38.1mm, the WLC550-1048 is designed for chassis mounting. It meets standards including NEMKO, UL, RoHS, cUL, and CE, and complies with standard 62368-1. The unit is manufactured in India.
The EOS WLC550-1048 has a maximum output voltage of 48V.
The WLC550-1048 provides an output current of 3.13A.
The power rating is 150W, with up to 550W available with forced air cooling.
The input voltage range is from 90V ac to 390V ac.
The operating temperature range is -40°C to 70°C.
The dimensions are 127mm in length, 76.2mm in width, and 38.1mm in height.
It complies with NEMKO, UL, RoHS, cUL, CE, and standard 62368-1.
