| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Weight | |
| Width |

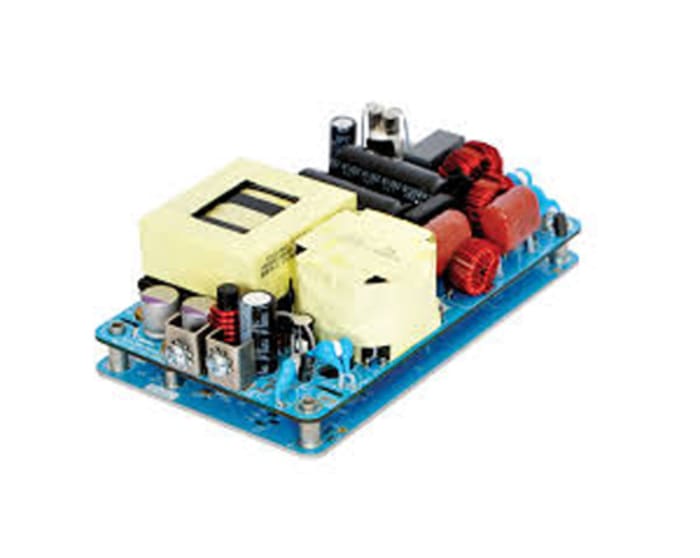

The EOS Power WLC550-1024 is a 150W AC DC switching power supply designed for ITE (Commercial) applications. It provides a stable 24V output at 6.25A, with a maximum power of 150W under standard conditions and up to 550W with forced air cooling.
Key electrical specifications include a universal input voltage range of 90V ac to 390V ac and an efficiency of 91% (up to 92% reported). The unit features adjustable output, power factor correction (PFC), a standby output, and a voltage rating of 3 kV.
Mechanically, the power supply measures 127.0mm in length, 76.2mm in width, and 38.1mm in height. It has a weight of 500g and is designed for chassis mounting. The operating temperature range is -40°C to 70°C with derating.
This power supply complies with IEC 62368-1 standards and is RoHS3 compliant. It is suitable for various ITE commercial applications requiring a reliable and efficient power source.
The WLC550-1024 has an output voltage of 24V.
The WLC550-1024 provides an output current of 6.25A.
The WLC550-1024 has a standard power rating of 150W, and can provide up to 550W with forced air cooling.
The WLC550-1024 accepts an input voltage range from 90V ac to 390V ac.
The WLC550-1024 has an efficiency of 91%.
The WLC550-1024 operates within a temperature range of -40°C to 70°C.
The WLC550-1024 measures 127.0mm in length, 76.2mm in width, and 38.1mm in height.
