| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Dimensions | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

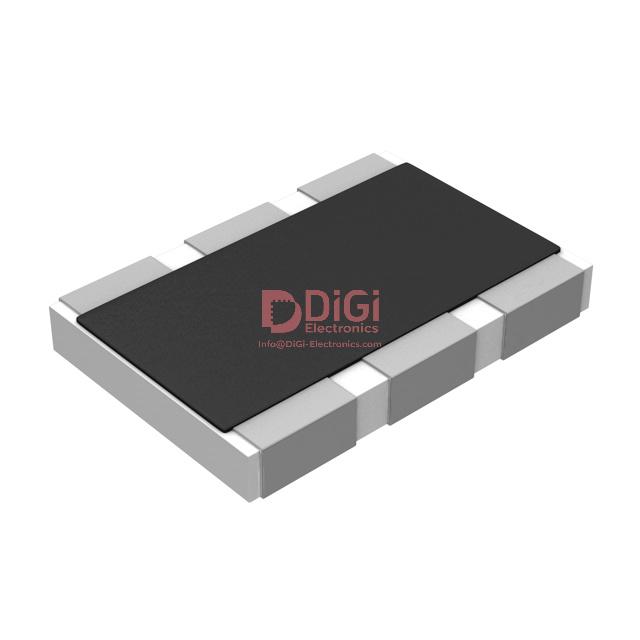

This KOA Speer Electronics WK73S2JTTE68L0F is a thick film chip resistor designed for surface mount applications. It offers a resistance value of 68 mΩ with a tight tolerance of ±1%, making it suitable for precise current sensing applications.
The resistor has a power rating of 1W and operates across a wide temperature range of -55°C to 155°C. Its construction features a wide-side termination, reverse-geometry type, and it is AEC-Q200 tested, indicating suitability for automotive environments. The component is also moisture resistant.
Packaged in an 1812 (4532 Metric) case size, this resistor is compatible with both reflow and flow soldering processes. Its dimensions are approximately 3.10mm L x 4.60mm W with a height of 0.70mm.
The WK73S series resistors are known for their high reliability and performance, with a temperature coefficient of ±100 x 10^-6/K as per datasheet information, and ±700ppm/°C as per manufacturer page. Products with lead-free terminations meet EU RoHS requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 68 mΩ.
The tolerance is ±1%.
The power rating is 1W.
The operating temperature range is -55°C to 155°C.
It is in a Wide 1812 (4532 Metric), 1218 package.
Yes, it is AEC-Q200 tested.
