| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
567,201 pcs
|
567201 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

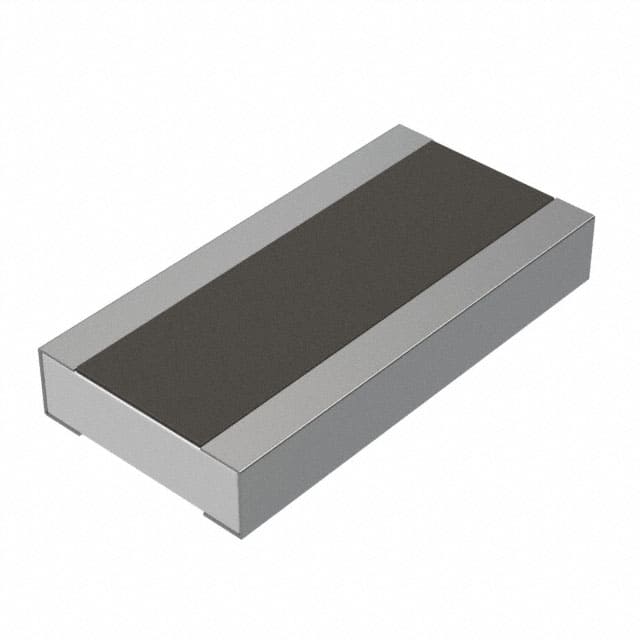

The KOA Speer Electronics WK73S2BTTDR330F is a wide terminal (reverse-geometry) type flat chip resistor designed for high reliability and performance. It features a resistance value of 330 mΩ with a tight tolerance of ±1% and a power rating of 0.75W.
This resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±200ppm/°C. Its construction utilizes thick film technology. The component is suitable for both reflow and flow solderings and meets EU RoHS requirements.
With dimensions of 1.60mm x 3.20mm (0.063" L x 0.126" W) and a height of 0.70mm (0.028"), it is designed for surface mounting. The WK73S2BTTDR330F is AEC-Q200 tested, making it suitable for automotive applications. It also offers moisture resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 330 mΩ.
The tolerance is ±1%.
The power rating is 0.75W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±200ppm/°C.
The dimensions are 1.60mm L x 3.20mm W (0.063" L x 0.126" W) with a height of 0.70mm (0.028").
Yes, it is AEC-Q200 tested and rated.
