WG92PR9SY AirBorn WG92PR9SY is a specialized backplane connector with 92 male pins arranged in 3 rows at 0.100" pitch. It features through hole right angle mounting, gold contact finish, and includes mating guide and mounting flange.
Mfr Part #:

WG92PR9SY

Available from 1 distributors
Mfr Name: AirBorn
AirBorn
AirBorn WG92PR9SY is a specialized backplane connector with 92 male pins arranged in 3 rows at 0.100" pitch. It features through hole right angle mounting, gold contact finish, and includes mating guide and mounting flange.
✓ Total Stock: 5 pcs
$ Price Range: $119.43 - $148.17

WG92PR9SY Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WG92PR9SY Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Termination
View Similar Products (0)

WG92PR9SY Description

Short technical summary and product information.

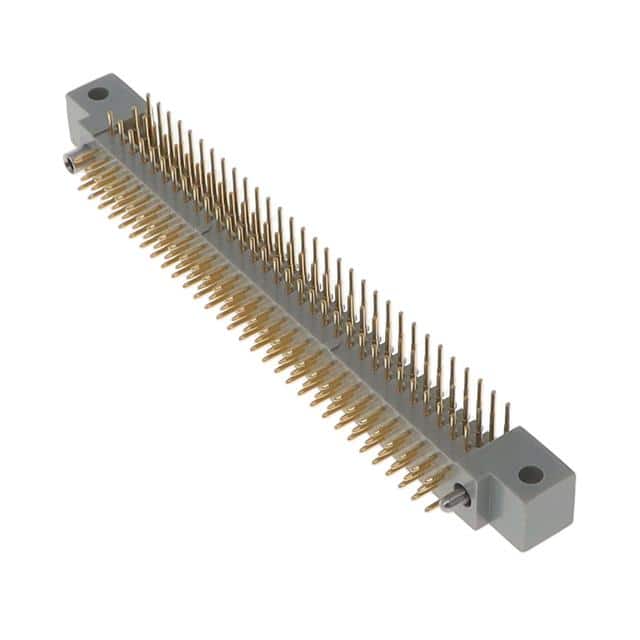

The AirBorn WG92PR9SY is a specialized backplane connector designed for high-density interconnect applications. This plug-style connector features 92 male pins with gold contact finish for reliable signal integrity.



The connector has 3 rows with a pitch of 0.100 inches (2.54 mm), enabling compact PCB layouts. It uses through hole termination with a right angle orientation, suitable for perpendicular board-to-board connections.



Key design features include a mating guide and mounting flange to ensure proper alignment and secure attachment. The connector is offered with all positions loaded, providing maximum signal routing flexibility.



This connector is classified under RoHS3 compliance and has an MSL of 1 (unlimited), indicating no moisture sensitivity restrictions.

WG92PR9SY Quick Information

Product Type: Specialized Backplane Connector
Series: WG
Canonical Name: AirBorn WG92PR9SY Specialized Backplane Connector, Plug, Male Pins, 92 Positions, 3 Rows, 0.100" Pitch, Through Hole, Right Angle
Subcategory: Specialized

WG92PR9SY Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WG92PR9SY Estimated Pricing

Qty Low High
1+ $148.17 $148.17
10+ $135.89 $135.89
25+ $130.67 $130.67
50+ $126.32 $126.32
100+ $119.43 $119.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

WG92PR9SY Features

  • 92 male pins on 3 rows.
  • 0.100 inch (2.54 mm) pitch.
  • Through hole, right angle mounting.
  • Gold contact finish for reliability.
  • Includes mating guide and mounting flange.

WG92PR9SY Applications

  • Used in specialized backplane interconnection systems.
  • Suitable for high-density PCB stacking.
  • Applied in industrial control and telecom equipment.

WG92PR9SY FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions on the WG92PR9SY?

92 positions, all loaded.

What is the pitch of this connector?

0.100 inches (2.54 mm).

What is the mounting type?

Through hole, right angle.

How many rows does it have?

3 rows.

What is the contact finish?

Gold.

What features are included?

Mating guide and mounting flange.

Is the WG92PR9SY RoHS compliant?

RoHS3 Compliant (unverified).
