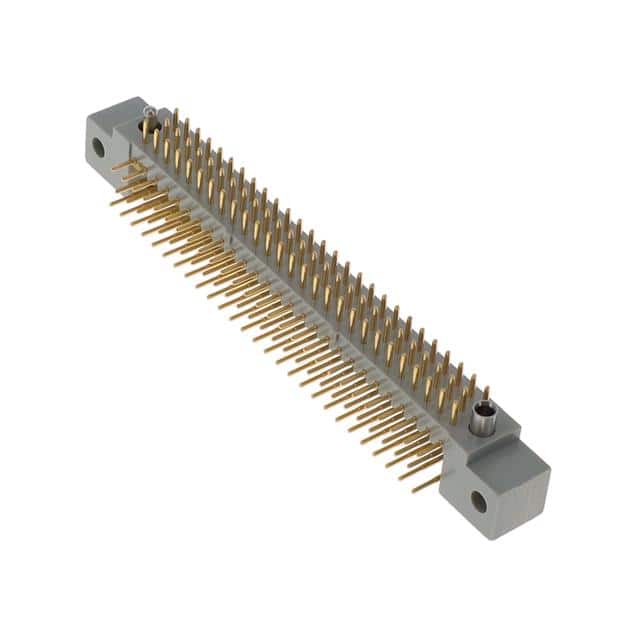

The AirBorn WG80PR9SY is a specialized backplane connector designed for high-density PCB interconnections. It is a plug connector with 80 male pins arranged in 3 rows, all positions loaded. The connector features a 2.54mm (0.100") pitch, making it suitable for standard spacing requirements. Mounting type is through-hole with right-angle orientation, allowing for edge-mount or perpendicular board connections. Termination is via solder, ensuring reliable electrical connections. The contacts are gold-plated for corrosion resistance and signal integrity. Additional features include a mating guide for alignment and mounting flanges for secure attachment to the PCB. This connector is typically used in backplane and daughtercard applications requiring high pin count and robust mechanical connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $131.70 | $131.70 |
| 10+ | $111.96 | $111.96 |
| 25+ | $111.93 | $111.93 |
| 50+ | $110.37 | $110.37 |
| 100+ | $96.27 | $96.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 positions, all loaded.
2.54mm (0.100")
Through-hole, right angle.
3 rows.
Gold.
Yes, it includes a mating guide and mounting flange.
Solder.
