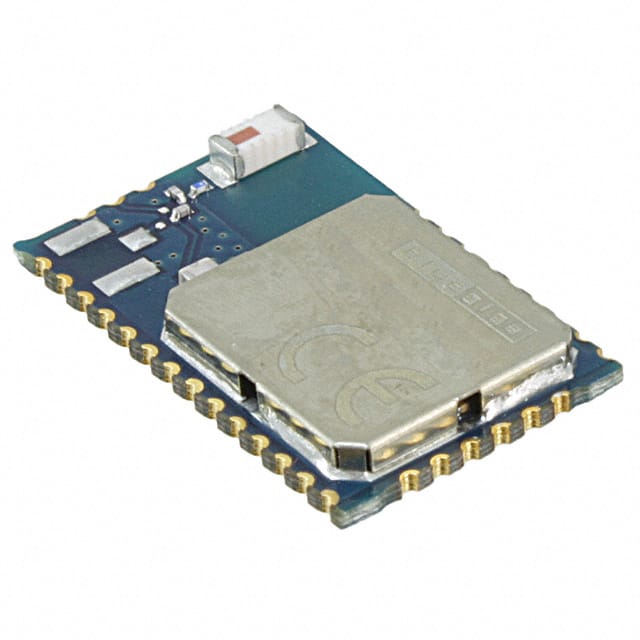

WF111-A-V1 The Silicon Labs WF111-A-V1 is an RF transceiver module designed for WiFi applications. It operates in the 2.4GHz band and supports 802.11b/g/n protocols.
Mfr Part #:

WF111-A-V1

Available from 2 distributors
Mfr Name: Silicon Labs
Silicon Labs
The Silicon Labs WF111-A-V1 is an RF transceiver module designed for WiFi applications. It operates in the 2.4GHz band and supports 802.11b/g/n protocols.
✓ Total Stock: 2,344 pcs
$ Price Range: $6.06

WF111-A-V1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,220 pcs
On Request
1220 pcs On Request 1 On Request On Request 22+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,124 pcs
On Request
1124 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WF111-A-V1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Type
Current
Data Rate
Frequency
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Tape & Reel
Voltage
View Similar Products (0)

WF111-A-V1 Description

Short technical summary and product information.

The Silicon Labs WF111-A-V1 is a compact RF transceiver module designed for wireless connectivity solutions. This module operates in the 2.4GHz frequency band and supports the 802.11b/g/n WiFi standards, offering a data rate of up to 72.2Mbps.



Key electrical characteristics include an operating voltage range of 1.7V to 3.6V and a current consumption between 70mA and 88mA. The module boasts a sensitivity of -97dBm and a transmit power of 17dBm, making it suitable for various wireless communication tasks.



Designed for surface mounting, the WF111-A-V1 features an integrated chip antenna. It supports multiple serial interfaces, including PIO, SDIO, and SPI, facilitating integration into different system designs. The module is rated for operation across a wide temperature range of -40°C to 85°C.

WF111-A-V1 Quick Information

Product Type: RF Transceiver Module
Canonical Name: WF111-A-V1 WiFi Module
Subcategory: WiFi Module

WF111-A-V1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WF111-A-V1 Estimated Pricing

Qty Low High
1+ $6.06 $6.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

WF111-A-V1 Features

  • Supports 802.11b/g/n WiFi protocols.
  • Operates at 2.4GHz frequency band.
  • Achieves 72.2Mbps data rate.
  • High sensitivity of -97dBm.
  • Surface mount module with integrated antenna.

WF111-A-V1 Applications

  • Ideal for wireless networking applications.
  • Suitable for IoT device connectivity.
  • Used in embedded wireless systems.
  • Enables remote data communication.

WF111-A-V1 FAQs

6 frequently asked questions generated from this part’s specifications.
What WiFi protocols does the WF111-A-V1 module support?

The WF111-A-V1 module supports 802.11b/g/n protocols.

What is the operating voltage range for this module?

The operating voltage range is 1.7V to 3.6V.

What is the data rate of the WF111-A-V1 module?

The data rate is 72.2Mbps.

What is the sensitivity of the WF111-A-V1 module?

The sensitivity is -97dBm.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What type of antenna does the WF111-A-V1 module have?

The module has an integrated chip antenna.
