| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| DC Voltage | |
| Efficiency | |
| Features | |
| Height | |
| Input Type | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Voltage | |
| Width |

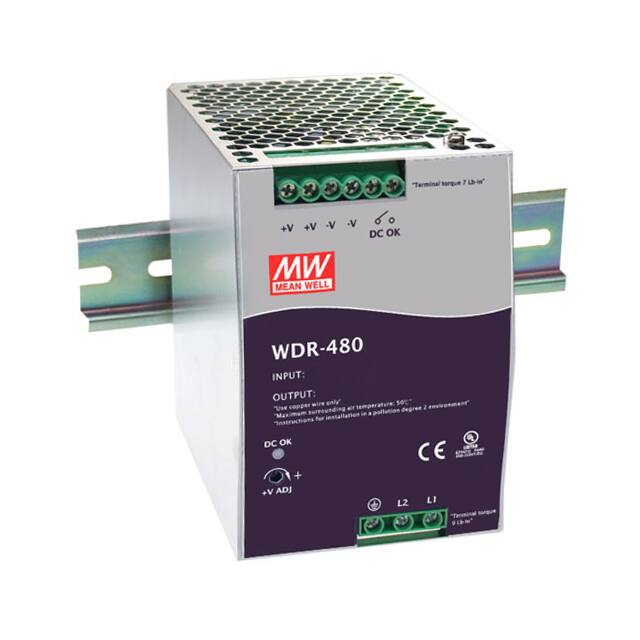

The Mean Well USA WDR-480-24 is a robust DIN rail power supply providing 24V DC output at 480W (20A). It accepts both AC and DC input: 180-550 VAC (2-phase) or 254 VDC, making it suitable for various industrial power systems. With a typical efficiency of 92%, it minimizes energy loss and heat generation. The unit includes adjustable output and power factor correction (PFC) for improved power quality.
Engineered for demanding environments, the WDR-480-24 operates from -30°C to 70°C with derating. It is designed for industrial and commercial ITE applications. The power supply has a compact DIN rail mount form factor with dimensions of 128.5mm x 85.5mm x 125.2mm (L x W x H). It holds approvals from CB, CE, and UL, ensuring compliance with international safety standards.
This power supply is ideal for factory automation, control panels, and telecom infrastructure where reliable 24V power is required. The adjustable output allows fine-tuning of voltage for specific load requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $181.98 | $181.98 |
| 5+ | $175.03 | $175.03 |
| 8+ | $163.20 | $163.20 |
| 24+ | $160.90 | $160.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24V DC.
180-550 VAC (2-phase) or 254 VDC.
-30°C to 70°C with derating.
It is listed as RoHS3 compliant, but this is unverified.
92% typical.
128.5mm x 85.5mm x 125.2mm (L x W x H).
CB, CE, UL.
