| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| DC Voltage | |
| Efficiency | |
| Features | |
| Height | |
| Input Type | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Voltage | |
| Width |

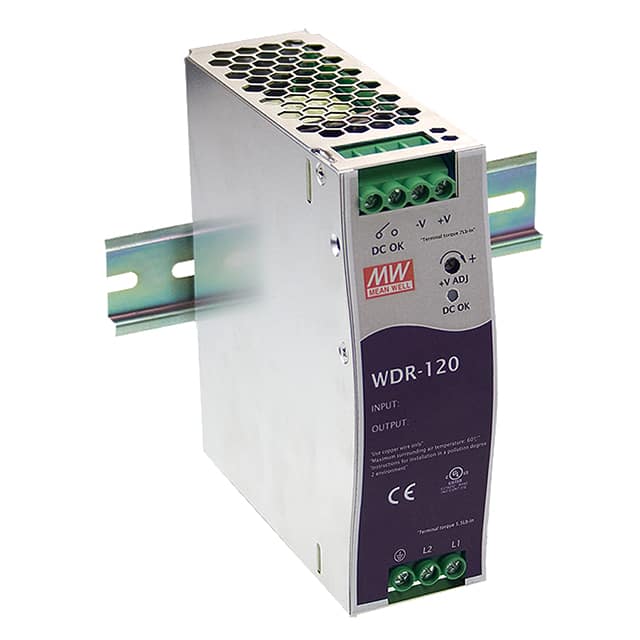

The WDR-120-48 is a 120W AC/DC DIN Rail power supply manufactured by Mean Well USA. It delivers a single 48V output with a maximum current of 2.5A, achieving up to 92% efficiency. The unit accepts a wide input voltage range of 180 to 550 VAC (2-phase) or 254 VDC, making it suitable for global industrial applications.
Key electrical features include adjustable output voltage, 3kV input-to-output isolation, and compliance with CB, CE, and cULus safety standards. The power supply is designed for reliable operation in industrial and commercial ITE environments.
The WDR-120-48 is housed in a metal enclosure with DIN Rail mounting, measuring 113.5mm x 40.0mm x 125.2mm. It operates over a temperature range of -25°C to 70°C with derating, ensuring performance in demanding conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $64.80 | $64.80 |
| 5+ | $61.70 | $61.70 |
| 10+ | $59.00 | $59.00 |
| 20+ | $57.30 | $57.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AC input range is 180 to 550 VAC (2-phase) and the DC input is 254 V.
It is housed in a metal enclosure.
-25°C to 70°C with derating.
Yes, it is listed as RoHS3 compliant.
The output is 48V at 2.5A, providing 120W of power.
The efficiency is 92%.
It is approved by CB, CE, and cULus.
