| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

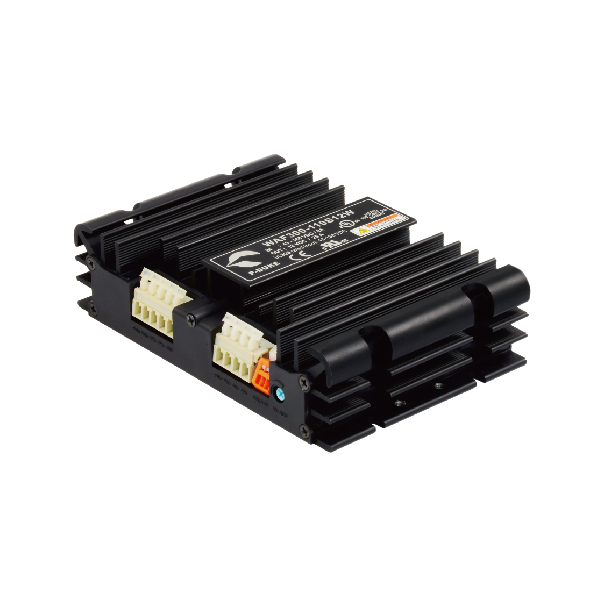

This P-DUKE Technology, Inc. WAF300-110S24W is an enclosed DC DC converter designed for industrial, ITE (Commercial), and Railway applications. It delivers a stable 24V output voltage with a maximum current of 12.5A, providing a total power of 300W. The converter features a wide input voltage range from 43V to 160V and boasts an efficiency of 91%.
With a robust design, it offers an isolation voltage of 3 kV and operates within a temperature range of -40°C to 100°C with derating. The unit is mounted via chassis mount and has dimensions of 152.4mm x 101.9mm x 38.6mm. It complies with several standards including 50155, 60950-1, 62368-1, and UL 508, and is approved by CE, cULus, and cURus agencies. The RoHS status is ROHS3 Compliant, and it is classified under MSL 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 24V.
The maximum output current is 12.5A.
The efficiency is 91%.
It operates from -40°C to 100°C with derating.
It complies with standards 50155, 60950-1, 62368-1, and UL 508.
It is housed in a box and mounts on a chassis.
RoHS3 compliance status is unverified.
