| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

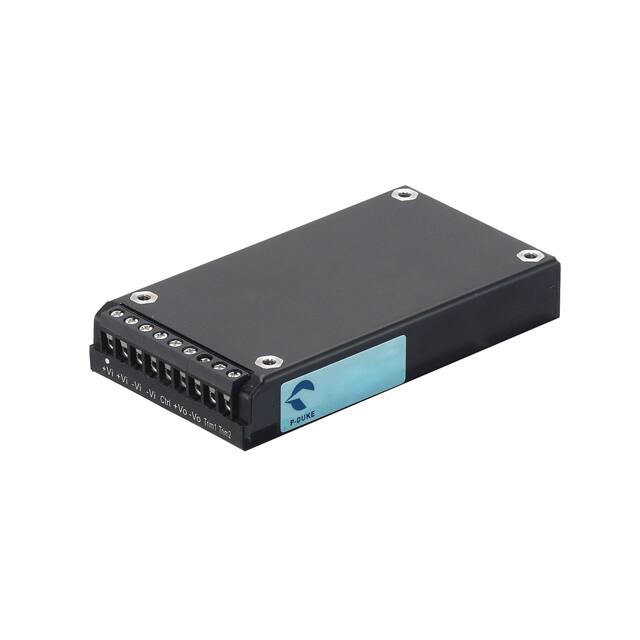

The P-DUKE Technology, Inc. WAD150-24S24W is a 151W enclosed DC DC converter designed for chassis mounting. It provides a single 24VDC output and accepts an input voltage range of 9 to 36VDC.
Key electrical specifications include an efficiency of 87%, a 2.25 kV input-to-output isolation, and a 6.3A current rating. The converter is designed to operate reliably in demanding environments, with an operating temperature range of -40°C to 100°C, with derating.
Mechanical dimensions are 98.0mm x 52.6mm x 17.0mm. The product complies with standard numbers 50155 and 60950-1, and is suitable for ITE (Commercial) and Railway applications. It features RoHS3 compliance and an MSL of 1.
This converter is suitable for applications requiring stable DC voltage conversion in industrial and railway settings. Its enclosed chassis mount design facilitates integration into various systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 24VDC.
The input voltage range is 9 to 36 VDC.
The power rating is 151W.
The operating temperature range is -40°C to 100°C (With Derating).
The dimensions are 98.0mm x 52.6mm x 17.0mm.
Yes, it complies with EN50155.
