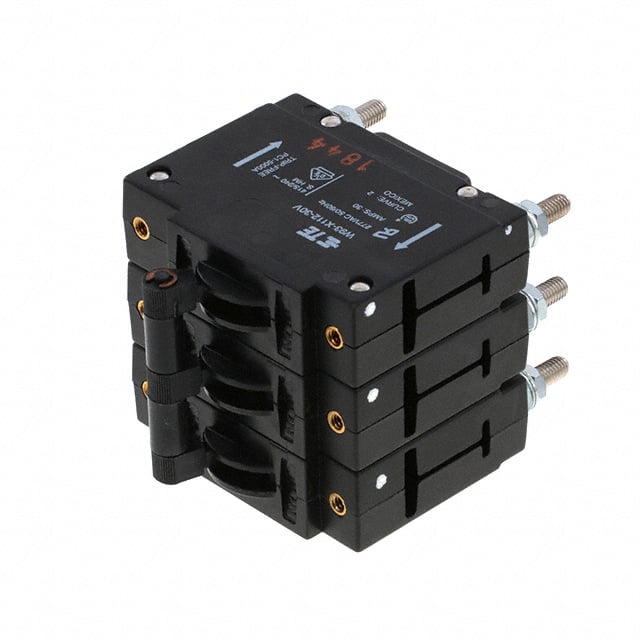

W93-X112-30V The TE Connectivity W93-X112-30V is a 3-pole circuit breaker featuring magnetic hydraulic delay. It is rated for 30A and 415VAC.
Mfr Part #:

W93-X112-30V

Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity W93-X112-30V is a 3-pole circuit breaker featuring magnetic hydraulic delay. It is rated for 30A and 415VAC.
Stock on Request

W93-X112-30V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

W93-X112-30V Description

Short technical summary and product information.

This TE Connectivity W93-X112-30V is a magnetic-hydraulic delay circuit breaker designed for panel mounting. It offers a current rating of 30A and a voltage rating of 415VAC across its 3 poles.



The breaker type is specifically magnetic with a hydraulic delay mechanism, providing reliable overcurrent protection. The actuator type is a lever for manual operation.



Environmental compliance includes RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. These specifications make it suitable for various industrial and commercial applications requiring robust circuit protection.

W93-X112-30V Quick Information

Product Type: Circuit Breaker
Canonical Name: TE Connectivity W93-X112-30V Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic Hydraulic Delay

W93-X112-30V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W93-X112-30V Features

  • 30A current rating for protection.
  • 415V AC voltage rating.
  • Magnetic hydraulic delay mechanism.
  • Panel mount design for easy installation.
  • 3-pole configuration.

W93-X112-30V Applications

  • Protects three-phase motor control circuits.
  • Safeguards industrial power distribution panels.
  • Provides overload protection for machinery.
  • Integrates into commercial switchgear assemblies.
  • Secures auxiliary power supply lines.

W93-X112-30V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the W93-X112-30V circuit breaker?

The W93-X112-30V has a continuous current rating of 30A.

What is the voltage rating for this circuit breaker?

This circuit breaker is rated for 415VAC operation.

How many poles does the W93-X112-30V have?

The W93-X112-30V is a three-pole circuit breaker.

What type of actuator does this breaker use?

It uses a manual lever actuator for switching and resetting.

What mounting method is required for installation?

The unit requires panel mounting for secure installation.

What tripping characteristic does this breaker utilize?

It utilizes a magnetic hydraulic delay tripping mechanism.

W93-X112-30V Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
W69-X1T12-30V
W69-X1T12-30V
TE Connectivity
The TE Connectivity W69-X1T12-30V is a 3-pole magnetic hydraulic circuit breaker with a 30A current rating and 415V voltage rating. It features a panel mount and lever actuator.
View Part
EA3-B0-24-630-12A-JD
EA3-B0-24-630-12A-JD
Littelfuse Inc.
The Littelfuse Inc. EA3-B0-24-630-12A-JD is a 3-pole circuit breaker with a 30A current rating and 415V voltage rating. It features a panel mount design and magnetic hydraulic delay.
View Part
EA3-B0-64-630-22A-JD
EA3-B0-64-630-22A-JD
Littelfuse Inc.
The EA3-B0-64-630-22A-JD is a circuit breaker manufactured by Littelfuse Inc. with a voltage rating of 415V and current rating of 30A.
View Part
IEL111-1-63-30.0-AD-01-V
IEL111-1-63-30.0-AD-01-V
Sensata
The Sensata IEL111-1-63-30.0-AD-01-V is a 3-pole circuit breaker featuring a magnetic hydraulic delay mechanism. It offers a 30A current rating and a 415V voltage rating.
View Part
