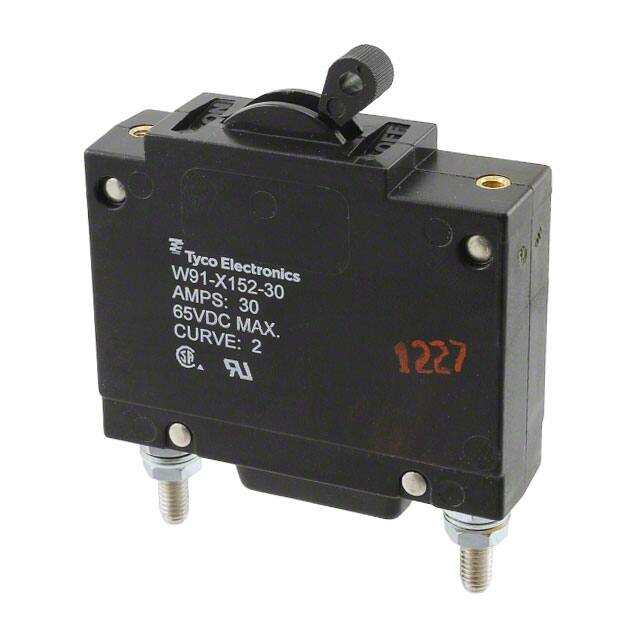

W91-X152-30 The W91-X152-30 is a 30A 65VDC magnetic (hydraulic delay) circuit breaker from TE Connectivity. It features a single pole, panel mount design with lever actuator.
Mfr Part #:

W91-X152-30

Mfr Name: TE Connectivity
TE Connectivity
The W91-X152-30 is a 30A 65VDC magnetic (hydraulic delay) circuit breaker from TE Connectivity. It features a single pole, panel mount design with lever actuator.
Stock on Request

W91-X152-30 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

W91-X152-30 Description

Short technical summary and product information.

The W91-X152-30 is a magnetic (hydraulic delay) circuit breaker from TE Connectivity. It is rated for 30A continuous current at 65VDC, making it suitable for DC power distribution and protection. The single pole design uses a lever actuator for manual operation and reset. The mounting type is panel mount.

W91-X152-30 Quick Information

Product Type: Circuit Breaker
Series: W91
Canonical Name: TE Connectivity W91-X152-30 Magnetic (Hydraulic Delay) Circuit Breaker, 30A, 65VDC, 1 Pole, Panel Mount
Subcategory: Single Pole Circuit Breakers

W91-X152-30 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W91-X152-30 Features

  • 30A current rating at 65VDC.
  • Magnetic hydraulic delay mechanism.
  • Single pole panel mount design.
  • Lever actuator for manual reset.

W91-X152-30 Applications

  • Overcurrent protection for DC power systems.
  • Suitable for marine and RV electrical panels.
  • Used in battery charging and distribution circuits.
  • Protects industrial control and automation equipment.
  • Ideal for telecommunications power supplies.

W91-X152-30 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the W91-X152-30 circuit breaker?

The voltage rating is 65VDC.

What is the current rating of the W91-X152-30?

30A.

How many poles does this circuit breaker have?

1 pole.

What type of actuator does the W91-X152-30 use?

Lever type actuator.

What is the breaker type of the W91-X152-30?

Magnetic (Hydraulic Delay).

What is the mounting type for this circuit breaker?

Panel mount.
