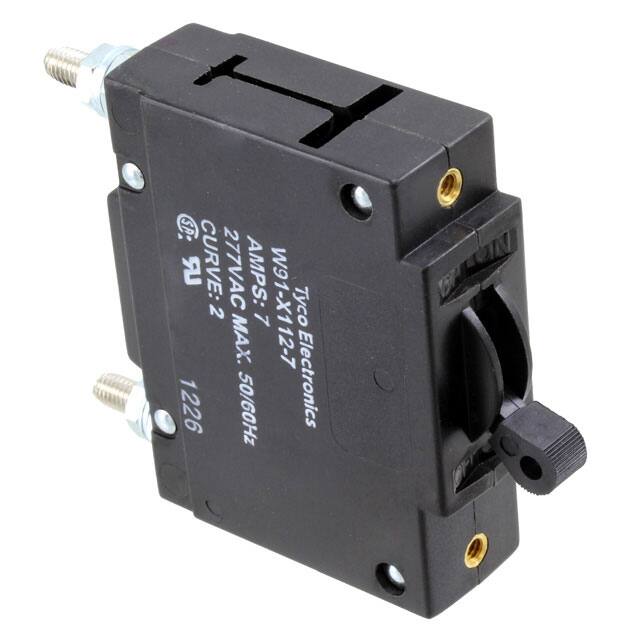

W91-X112-7 TE Connectivity W91-X112-7 is a 1-pole magnetic hydraulic delay circuit breaker rated for 7A at 277VAC. It features a lever actuator and panel mount design.
Mfr Part #:

W91-X112-7

Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity W91-X112-7 is a 1-pole magnetic hydraulic delay circuit breaker rated for 7A at 277VAC. It features a lever actuator and panel mount design.
Stock on Request

W91-X112-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

W91-X112-7 Description

Short technical summary and product information.

The TE Connectivity W91-X112-7 is a single-pole magnetic hydraulic delay circuit breaker designed for overcurrent protection. It is rated for 7A continuous current at 277VAC.



The breaker uses a magnetic hydraulic delay mechanism for precise trip characteristics. It is panel mounted and operated via a lever actuator.



Suitable for use in industrial control panels, power distribution, and equipment requiring reliable circuit protection. The hydraulic delay provides time-delayed tripping for inrush currents.



Panel mount installation with lever actuator for manual reset.

W91-X112-7 Quick Information

Product Type: Circuit Breaker
Series: W91
Canonical Name: TE Connectivity W91-X112-7 Magnetic Hydraulic Delay Circuit Breaker, 7A, 277VAC, 1 Pole, Panel Mount
Subcategory: Circuit Breakers

W91-X112-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W91-X112-7 Features

  • Rated for 7A continuous current.
  • 277VAC voltage rating.
  • Single pole magnetic-hydraulic breaker.
  • Lever actuator for manual operation.
  • Panel mount design.

W91-X112-7 Applications

  • Provides overcurrent protection for industrial control panels.
  • Used in power distribution equipment up to 277VAC.
  • Suitable for panel-mounted circuit breaker applications.
  • Protects branch circuits rated at 7 amps.
  • Ideal for commercial lighting and HVAC equipment.

W91-X112-7 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the W91-X112-7?

7A

What is the voltage rating of the W91-X112-7?

277VAC

How many poles does this circuit breaker have?

1 pole

What type of breaker is the W91-X112-7?

Magnetic hydraulic delay

What actuator type does the W91-X112-7 use?

Lever

What is the mounting type of the W91-X112-7?

Panel mount

W91-X112-7 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
AA1-B0-24-470-5D1-C
AA1-B0-24-470-5D1-C
Littelfuse Inc.
The Littelfuse Inc. AA1-B0-24-470-5D1-C is a 1-pole magnetic circuit breaker with a 7A current rating and 277V voltage rating. It features a lever actuator and panel mount type.
View Part
AA1-B0-46-470-3B1-C
AA1-B0-46-470-3B1-C
Littelfuse Inc.
The Littelfuse Inc. AA1-B0-46-470-3B1-C is a 1-pole circuit breaker designed for panel mounting. It features a magnetic (hydraulic delay) trip type and a 7A current rating.
View Part
AA1-B0-12-470-1B1-C
AA1-B0-12-470-1B1-C
Littelfuse Inc.
The Littelfuse Inc. AA1-B0-12-470-1B1-C is a single-pole, magnetic hydraulic delay circuit breaker. It features a 7A current rating and a 277V voltage rating.
View Part
AA1-B0-26-470-1B1-C
AA1-B0-26-470-1B1-C
Littelfuse Inc.
The Littelfuse Inc. AA1-B0-26-470-1B1-C is a 1-pole circuit breaker designed for panel mounting. It features a magnetic hydraulic delay mechanism.
View Part
