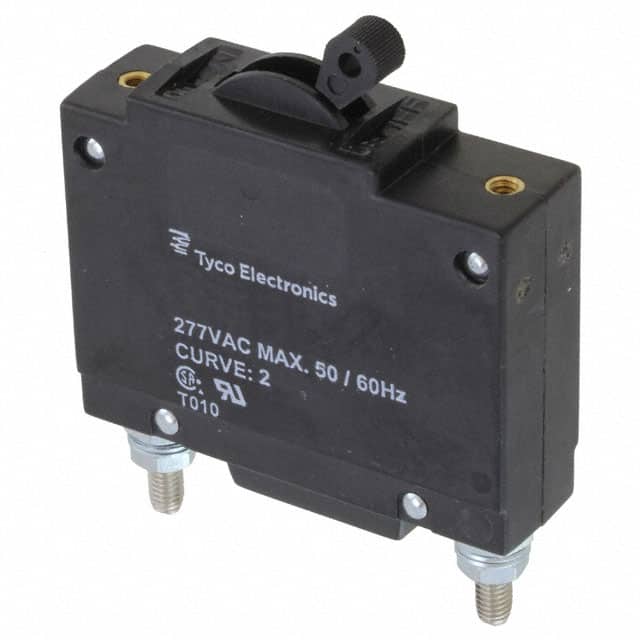

W91-X112-30 The TE Connectivity W91-X112-30 is a single-pole circuit breaker rated for 30A at 277VAC and 48VDC. It features a magnetic (hydraulic delay) trip mechanism and a lever actuator.
Mfr Part #:

W91-X112-30

Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity W91-X112-30 is a single-pole circuit breaker rated for 30A at 277VAC and 48VDC. It features a magnetic (hydraulic delay) trip mechanism and a lever actuator.
Stock on Request

W91-X112-30 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Industrial Grade
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

W91-X112-30 Description

Short technical summary and product information.

This TE Connectivity W91-X112-30 is a single-pole circuit breaker designed for panel mounting. It offers a current rating of 30A and can handle voltages up to 277VAC and 48VDC.



The breaker type is magnetic with a hydraulic delay, providing reliable protection. The actuator type is a lever for easy operation.



Environmental compliance includes RoHS3 compliance and an MSL of 1. REACH status is unaffected. Further details on operating temperature and other specifications should be confirmed with the manufacturer.

W91-X112-30 Quick Information

Product Type: Circuit Breaker
Series: W91
Canonical Name: TE Connectivity W91-X112-30 Circuit Breaker
Subcategory: Circuit Breaker

W91-X112-30 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W91-X112-30 Features

  • 30A current rating for high power circuits.
  • 277VAC and 48VDC voltage support.
  • Magnetic (hydraulic delay) trip mechanism.
  • Single-pole design for basic protection.
  • Panel mount for easy integration.

W91-X112-30 Applications

  • Suitable for power distribution.
  • Used in control panel assemblies.
  • Ideal for equipment protection.
  • General purpose circuit protection.

W91-X112-30 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the W91-X112-30 circuit breaker?

The current rating is 30A.

What is the voltage rating for the W91-X112-30?

The voltage rating is 277VAC and 48VDC.

What type of breaker is the W91-X112-30?

It is a Magnetic (Hydraulic Delay) breaker type.

How many poles does the W91-X112-30 have?

It has 1 pole.

What is the mounting type for this circuit breaker?

The mounting type is Panel Mount.

Is the W91-X112-30 RoHS compliant?

The RoHS Status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.

W91-X112-30 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
BA1-B1-12-630-L21-C
BA1-B1-12-630-L21-C
Littelfuse Inc.
The Littelfuse Inc. BA1-B1-12-630-L21-C is a single-pole circuit breaker. It features a magnetic hydraulic delay mechanism and a panel mount design.
View Part
BA1-B0-22-630-121-C
BA1-B0-22-630-121-C
Littelfuse Inc.
The Littelfuse Inc. BA1-B0-22-630-121-C is a single-pole, magnetic hydraulic delay circuit breaker. It features a 30A current rating and a 277V voltage rating.
View Part
AA1-B0-12-630-E92-D
AA1-B0-12-630-E92-D
Littelfuse Inc.
The Littelfuse AA1-B0-12-630-E92-D is a 30A, 1-pole magnetic (hydraulic delay) circuit breaker rated for 277V. It features a lever actuator and panel mount design.
View Part
BA1-B0-10-630-3D1-C
BA1-B0-10-630-3D1-C
Littelfuse Inc.
The Littelfuse Inc. BA1-B0-10-630-3D1-C is a single-pole, magnetic (hydraulic delay) circuit breaker. It features a 30A current rating and a 277V voltage rating.
View Part
