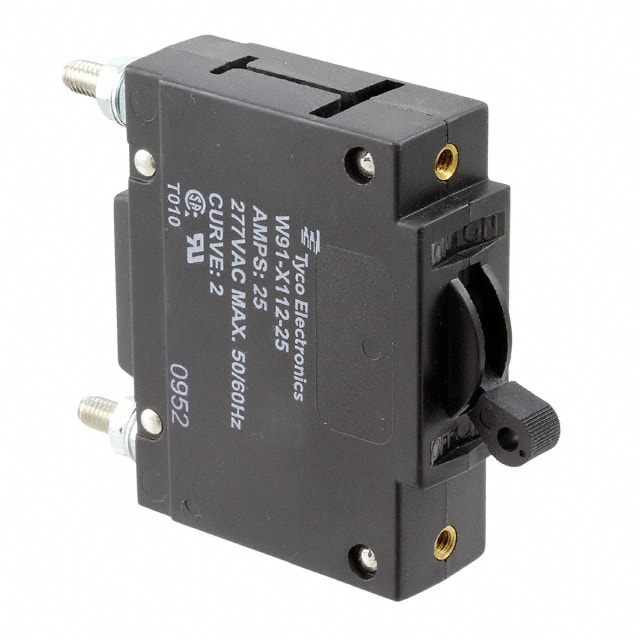

W91-X112-25 TE Connectivity W91-X112-25 is a single-pole magnetic circuit breaker with a 25A current rating and 277VAC/48VDC voltage rating. It features a panel mount type.
Mfr Part #:

W91-X112-25

Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity W91-X112-25 is a single-pole magnetic circuit breaker with a 25A current rating and 277VAC/48VDC voltage rating. It features a panel mount type.
Stock on Request

W91-X112-25 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

W91-X112-25 Description

Short technical summary and product information.

The TE Connectivity W91-X112-25 is a single-pole circuit breaker designed for panel mounting. It offers a current rating of 25A and a voltage rating of 277VAC or 48VDC.



This breaker utilizes a magnetic (hydraulic delay) mechanism for protection. The actuator type is a lever, providing a clear visual indication of its state. Its robust construction and specified ratings make it suitable for various electrical protection applications.



Key electrical specifications include a 25A current carrying capacity and a 277V AC / 48V DC voltage rating. The panel mount design ensures straightforward integration into electrical enclosures and control panels.

W91-X112-25 Quick Information

Product Type: Circuit Breaker
Canonical Name: TE Connectivity W91-X112-25 Magnetic (Hydraulic Delay) Circuit Breaker

W91-X112-25 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W91-X112-25 Features

  • 25A current rating for power circuits.
  • 277VAC/48VDC voltage rating.
  • Single-pole magnetic circuit breaker.
  • Panel mount installation type.
  • Lever actuator for operation.

W91-X112-25 Applications

  • Used in electrical distribution panels.
  • Suitable for control system protection.
  • Applicable in industrial equipment.
  • Ideal for power supply circuits.

W91-X112-25 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the W91-X112-25?

The W91-X112-25 is rated for 277VAC and 48VDC.

What is the current rating of this circuit breaker?

25A.

How many poles does the W91-X112-25 have?

It is a single-pole (1-pole) circuit breaker.

What type of circuit breaker is the W91-X112-25?

Magnetic (Hydraulic Delay).

What type of actuator does the W91-X112-25 have?

It has a lever actuator.

How is the W91-X112-25 mounted?

It is panel mounted.

W91-X112-25 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
AA1-B0-10-625-1B2-C
AA1-B0-10-625-1B2-C
Littelfuse Inc.
The Littelfuse Inc. AA1-B0-10-625-1B2-C is a single-pole, panel-mount circuit breaker. It features a 25A current rating and a 277V voltage rating with a magnetic (hydraulic delay) trip type.
View Part
AA1-B0-24-625-1D1-C
AA1-B0-24-625-1D1-C
Littelfuse Inc.
Littelfuse AA1-B0-24-625-1D1-C is a 25A, 277V, 1-pole magnetic hydraulic delay circuit breaker. It features a lever actuator and panel mount design, approved by CCC, CSA, and UL.
View Part
AA1-B0-46-625-1B1-C
AA1-B0-46-625-1B1-C
Littelfuse Inc.
The Littelfuse Inc. AA1-B0-46-625-1B1-C is a 1-pole circuit breaker rated for 25A and 277V. It features a magnetic hydraulic delay trip and a lever actuator for panel mounting.
View Part
AA1-B0-14-625-1D2-C
AA1-B0-14-625-1D2-C
Littelfuse Inc.
The AA1-B0-14-625-1D2-C is a 25A, 277V single-pole circuit breaker designed for panel mounting. It features a magnetic hydraulic delay trip mechanism and a manual lever actuator.
View Part
