| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

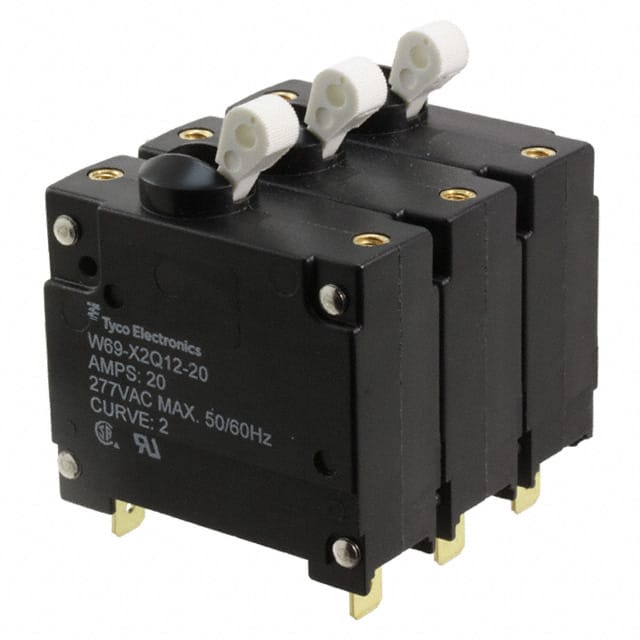

This TE Connectivity W69-X2Q12-20 is a 3-pole circuit breaker with a magnetic-hydraulic delay type. It is suitable for panel mounting applications and provides a current rating of 20A at a voltage rating of 277V.
The breaker is designed for reliable protection in various electrical systems. Its robust construction and specific tripping characteristics make it a suitable choice for applications requiring precise overcurrent and short-circuit protection.
Key electrical specifications include a 20A current rating and a 277V voltage rating. The actuator type is a lever, facilitating easy operation. The mounting type is panel mount, allowing for straightforward integration into control panels and enclosures.
277VAC.
20A.
Magnetic (Hydraulic Delay).
3 poles.
Lever actuator.
Panel mount.
