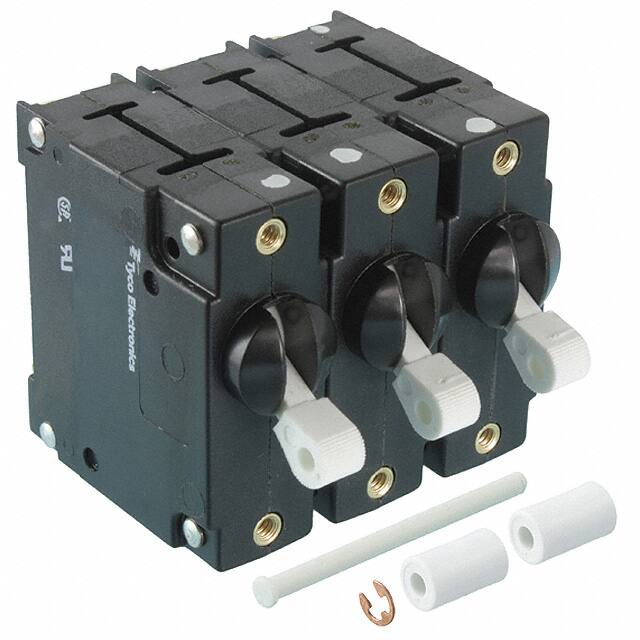

W69-X2Q12-15 TE Connectivity W69-X2Q12-15 is a 3-pole magnetic hydraulic circuit breaker with a current rating of 15A and voltage rating of 277VAC. It features a lever actuator and panel mount design.
Mfr Part #:

W69-X2Q12-15

Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity W69-X2Q12-15 is a 3-pole magnetic hydraulic circuit breaker with a current rating of 15A and voltage rating of 277VAC. It features a lever actuator and panel mount design.
Stock on Request

W69-X2Q12-15 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

W69-X2Q12-15 Description

Short technical summary and product information.

The TE Connectivity W69-X2Q12-15 is a 3-pole magnetic (hydraulic delay) circuit breaker designed for overcurrent protection. It is rated for 15A at 277VAC. The breaker features a lever actuator for manual operation and is panel mounted for secure installation. It is suitable for use in industrial control panels, power distribution systems, and other applications requiring reliable circuit protection. The hydraulic-magnetic trip mechanism provides precise time-delay characteristics, minimizing nuisance tripping while ensuring protection against short circuits and overloads.

W69-X2Q12-15 Quick Information

Product Type: Circuit Breaker
Series: W69
Canonical Name: Circuit Breaker, Magnetic (Hydraulic Delay), 3 Pole, 15A, 277VAC, Panel Mount, Lever Actuator
Subcategory: Magnetic (Hydraulic Delay) Circuit Breaker

W69-X2Q12-15 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W69-X2Q12-15 Features

  • Rated for 15A continuous current.
  • Operates at 277VAC voltage.
  • Three-pole magnetic hydraulic design.
  • Panel mount with lever actuator.
  • Hydraulic-magnetic trip mechanism.

W69-X2Q12-15 Applications

  • Used in industrial control panels.
  • Suitable for power distribution systems.
  • Ideal for overcurrent protection circuits.
  • Applicable in commercial electrical equipment.

W69-X2Q12-15 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the W69-X2Q12-15?

15A.

What is the voltage rating of the W69-X2Q12-15?

277VAC.

What type of circuit breaker is the W69-X2Q12-15?

Magnetic (Hydraulic Delay).

How many poles does the W69-X2Q12-15 have?

3 poles.

What is the actuator type of the W69-X2Q12-15?

Lever.

What is the mounting type of the W69-X2Q12-15?

Panel Mount.

W69-X2Q12-15 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
AA3-B0-34-615-5B1-C
AA3-B0-34-615-5B1-C
Littelfuse Inc.
The Littelfuse Inc. AA3-B0-34-615-5B1-C is a 3-pole magnetic circuit breaker with a 15A current rating and 277V voltage rating. It features a panel mount design and lever actuator.
View Part
AA3-B2-24-615-1D1-C
AA3-B2-24-615-1D1-C
Littelfuse Inc.
3-pole magnetic (hydraulic delay) circuit breaker rated 15A at 277V AC. Panel mount with lever actuator. Approved by UL, CSA, and CCC.
View Part
AA3-B0-44-615-9G1-C
AA3-B0-44-615-9G1-C
Littelfuse Inc.
The Littelfuse Inc. AA3-B0-44-615-9G1-C is a 3-pole circuit breaker designed for panel mounting. It features a 15A current rating and a 277V voltage rating.
View Part
AA3-B0-21-615-1B1-C
AA3-B0-21-615-1B1-C
Littelfuse Inc.
The Littelfuse Inc. AA3-B0-21-615-1B1-C is a 3-pole circuit breaker designed for panel mounting. It features a 15A current rating and a 277V voltage rating. This magnetic hydraulic delay breaker is approved by CCC, CSA, and UL.
View Part
