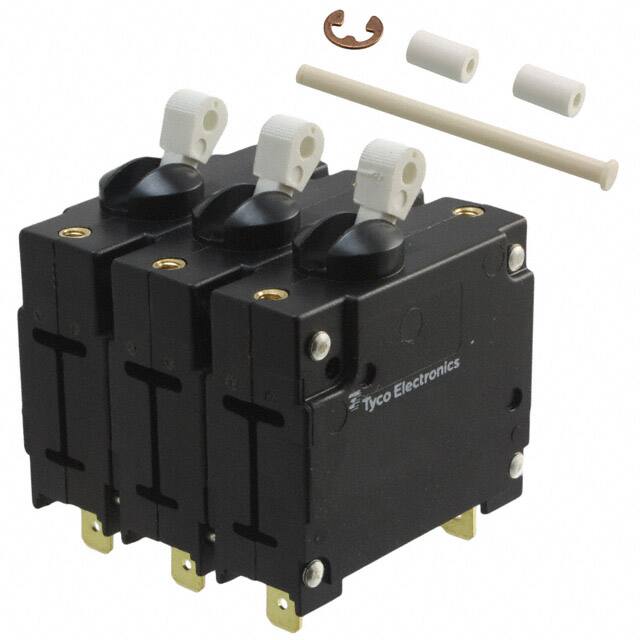

W69-X2Q12-10 This TE Connectivity W69-X2Q12-10 is a 3-pole circuit breaker featuring a magnetic-hydraulic delay mechanism. It is rated for 10A and 277VAC with a panel mount design.
Mfr Part #:

W69-X2Q12-10

Mfr Name: TE Connectivity
TE Connectivity
This TE Connectivity W69-X2Q12-10 is a 3-pole circuit breaker featuring a magnetic-hydraulic delay mechanism. It is rated for 10A and 277VAC with a panel mount design.
Stock on Request

W69-X2Q12-10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

W69-X2Q12-10 Description

Short technical summary and product information.

The TE Connectivity W69-X2Q12-10 is a magnetic-hydraulic circuit breaker designed for reliable protection. It offers a current rating of 10A and a voltage rating of 277VAC across its three poles.



This breaker features a lever actuator and a panel mount type, making it suitable for integration into various electrical enclosures and systems. The magnetic-hydraulic delay provides specific trip characteristics for different load conditions.



Compliance information indicates RoHS3 compliance and MSL 1, though these are based on available database information and may require verification. REACH status is listed as unaffected.



This component is identified by the part number W69-X2Q12-10 and its distributor equivalent PB432-ND.

W69-X2Q12-10 Quick Information

Product Type: Circuit Breaker
Canonical Name: TE Connectivity W69-X2Q12-10 Magnetic-Hydraulic Circuit Breaker
Subcategory: Magnetic (Hydraulic Delay)

W69-X2Q12-10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W69-X2Q12-10 Features

  • 10A current rating for protection.
  • 277VAC voltage rating.
  • Three-pole configuration.
  • Magnetic-hydraulic delay mechanism.
  • Panel mount design.

W69-X2Q12-10 Applications

  • Used in industrial control panels.
  • Suitable for commercial power distribution.
  • Protects motors and transformers.
  • Ideal for HVAC equipment.
  • Applied in lighting control systems.

W69-X2Q12-10 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the W69-X2Q12-10?

10A.

What is the voltage rating of the W69-X2Q12-10?

277VAC.

How many poles does the W69-X2Q12-10 have?

3 poles.

What type of circuit breaker is the W69-X2Q12-10?

Magnetic (Hydraulic Delay).

What is the actuator type on the W69-X2Q12-10?

Lever.

What is the mounting type of the W69-X2Q12-10?

Panel Mount.
