W681388DG The Winbond Electronics W681388DG is a voiceband codec featuring an 8-bit resolution and a PCM interface. It operates with analog and digital supply voltages of 4.5V to 5.5V and is designed for through-hole mounting.
Mfr Part #:

W681388DG

Available from 1 distributors
Mfr Name: Winbond Electronics
Winbond Electronics
The Winbond Electronics W681388DG is a voiceband codec featuring an 8-bit resolution and a PCM interface. It operates with analog and digital supply voltages of 4.5V to 5.5V and is designed for through-hole mounting.
✓ Total Stock: 935 pcs
$ Price Range: $2.02

W681388DG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
935 pcs
On Request
935 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

W681388DG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Supplier Device Package
Type
View Similar Products (0)

W681388DG Description

Short technical summary and product information.

The Winbond Electronics W681388DG is a voiceband codec designed for single-channel FXS telephone line interfaces. It integrates SLIC functionality with a programmable CODEC and a DC-to-DC controller, supporting μ-law/A-law or 16-bit linear PCM encoding.



This codec operates with analog and digital supply voltages ranging from 4.5V to 5.5V and has an operating temperature range of -40°C to 85°C. It features an 8-bit resolution and a PCM interface, making it suitable for applications such as Analog Telephone Adapters, Voice enabled DSL Modems, and Residential VoIP Gateways.

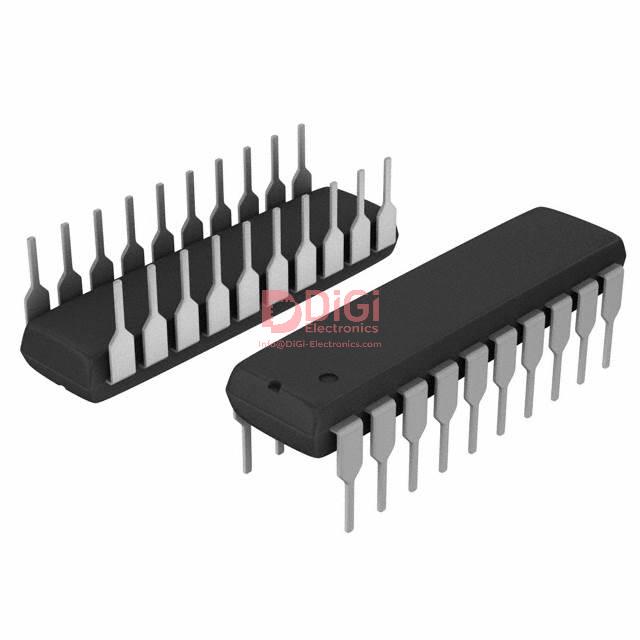

The W681388DG is available in a 20-DIP (0.300", 7.62mm) package and utilizes through-hole mounting. Its design allows for programmable impedance and transhybrid balancing for worldwide deployment.

W681388DG Quick Information

Product Type: Voiceband Codec
Canonical Name: W681388DG Voiceband Codec
Subcategory: Voiceband Codec

W681388DG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W681388DG Estimated Pricing

Qty Low High
1+ $2.02 $2.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

W681388DG Features

  • 8-bit resolution PCM voiceband codec
  • Operates at 4.5V to 5.5V supply
  • PCM audio interface supported
  • Through-hole mounting package
  • Obsolete product status

W681388DG Applications

  • Analog Telephone Adapters
  • VoIP Gateways and Routers
  • Voice enabled modems
  • Customer premise equipment

W681388DG FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage for the W681388DG?

The W681388DG operates with analog and digital supply voltages between 4.5V and 5.5V.

What is the resolution of the W681388DG codec?

The W681388DG has a resolution of 8 bits.

What type of interface does the W681388DG use?

The W681388DG uses a PCM interface for both data and audio.

What is the operating temperature range for the W681388DG?

The W681388DG operates within a temperature range of -40°C to 85°C.

What package type is the W681388DG available in?

The W681388DG is available in a 20-DIP (0.300", 7.62mm) package and uses through-hole mounting.
