| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Halogen Free | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

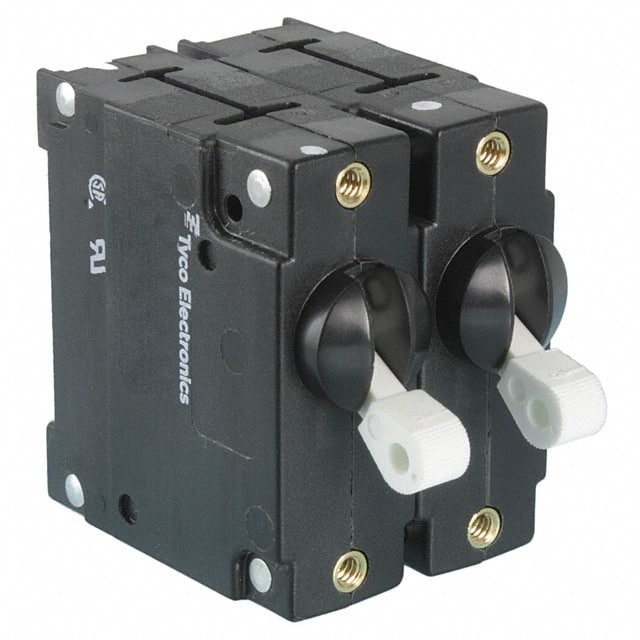

This TE Connectivity W68-X2Q12-5 is a 2-pole circuit breaker with a current rating of 5A and a voltage rating of 277V. It employs a magnetic-hydraulic delay for its tripping mechanism, offering reliable protection.
The breaker is designed for panel mounting, making it suitable for integration into various electrical enclosures and systems. Its robust construction and specific tripping characteristics are designed for applications requiring precise overcurrent and short-circuit protection.
Key electrical specifications include a 5A current capacity and a 277V voltage rating. The magnetic-hydraulic delay type ensures a specific response curve for fault conditions. The actuator type is a lever, providing a clear visual indication of the breaker's state.
This component is categorized under circuit breakers, a critical part of circuit protection systems. Its specifications make it suitable for industrial, commercial, or specialized equipment where dependable circuit interruption is essential.
277V AC.
5A.
2 poles.
Magnetic hydraulic delay (hydraulic-magnetic).
Panel mount.
Lever actuator.
