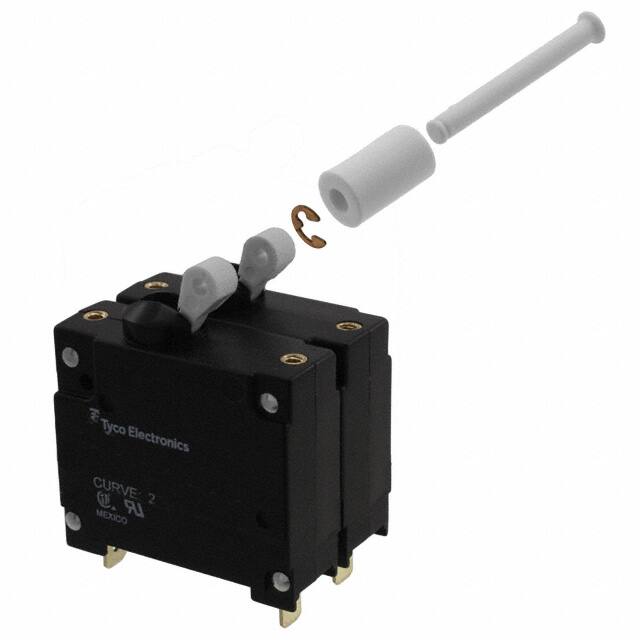

W68-X2Q12-30 The TE Connectivity W68-X2Q12-30 is a 2-pole circuit breaker with a 30A current rating and 277V voltage rating. It features a magnetic hydraulic delay mechanism and panel mount capability.
Mfr Part #:

W68-X2Q12-30

Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity W68-X2Q12-30 is a 2-pole circuit breaker with a 30A current rating and 277V voltage rating. It features a magnetic hydraulic delay mechanism and panel mount capability.
Stock on Request

W68-X2Q12-30 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

W68-X2Q12-30 Description

Short technical summary and product information.

This TE Connectivity W68-X2Q12-30 is a magnetic hydraulic delay circuit breaker designed for panel mounting. It offers a current rating of 30 Amps and a voltage rating of 277 Volts, with two poles for circuit protection.



The breaker type is magnetic with a hydraulic delay, suitable for applications requiring specific trip characteristics. The actuator type is a lever for easy operation.



Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as low confidence due to lack of verification.



This component is identified by the manufacturer part number W68-X2Q12-30 and the distributor part number PB594-ND.

W68-X2Q12-30 Quick Information

Product Type: Circuit Breaker
Canonical Name: TE Connectivity W68-X2Q12-30 Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic (Hydraulic Delay)

W68-X2Q12-30 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W68-X2Q12-30 Features

  • 30A current rating at 277V.
  • Magnetic hydraulic delay breaker type.
  • Two-pole configuration for circuit protection.
  • Panel mount for easy installation.
  • Lever actuator for operation.

W68-X2Q12-30 Applications

  • Used in industrial control panel protection.
  • Suitable for commercial power distribution.
  • Ideal for HVAC equipment overcurrent protection.
  • Applied in motor control circuits.
  • Used in lighting control systems.

W68-X2Q12-30 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the W68-X2Q12-30?

277VAC.

What is the current rating of this circuit breaker?

30A.

How many poles does this circuit breaker have?

2 poles.

What type of circuit breaker is the W68-X2Q12-30?

Magnetic (Hydraulic Delay) circuit breaker.

What is the mounting type of this circuit breaker?

Panel mount.

What type of actuator does this circuit breaker have?

Lever actuator.

W68-X2Q12-30 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
AB2-B0-32-630-521-C
AB2-B0-32-630-521-C
Littelfuse Inc.
The Littelfuse Inc. AB2-B0-32-630-521-C is a 2-pole circuit breaker designed for panel mounting. It features a 30A current rating and a 277V voltage rating.
View Part
AB2-B0-34-630-3G1-C
AB2-B0-34-630-3G1-C
Littelfuse Inc.
The Littelfuse Inc. AB2-B0-34-630-3G1-C is a two-pole magnetic hydraulic delay circuit breaker. It features a 30A current rating and a 277V voltage rating.
View Part
AB2-B0-34-630-3D2-C
AB2-B0-34-630-3D2-C
Littelfuse Inc.
The Littelfuse Inc. AB2-B0-34-630-3D2-C is a 2-pole circuit breaker designed for panel mounting. It features a magnetic hydraulic delay mechanism and a 30A current rating.
View Part
AA2-B0-24-630-5B2-C
AA2-B0-24-630-5B2-C
Littelfuse Inc.
The Littelfuse Inc. AA2-B0-24-630-5B2-C is a 2-pole circuit breaker with a 30A current rating and 277V voltage rating. It features a magnetic hydraulic delay mechanism and panel mount design.
View Part
