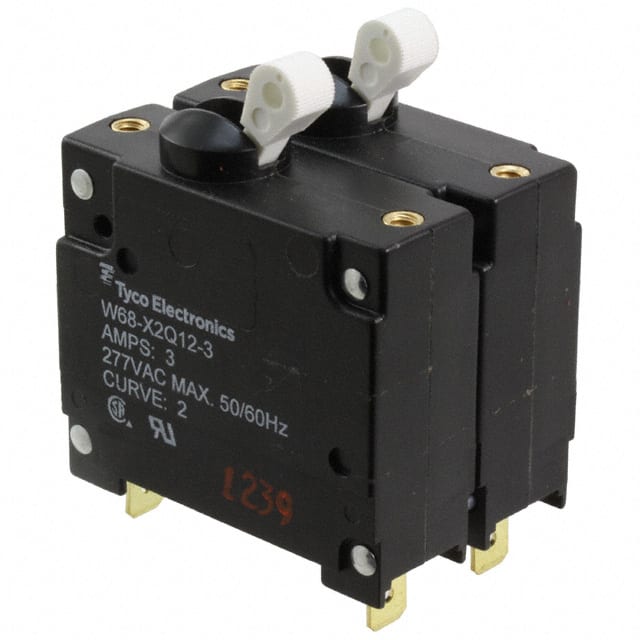

W68-X2Q12-3 The TE Connectivity W68-X2Q12-3 is a 2-pole magnetic hydraulic delay circuit breaker. It features a 3A current rating and a 277V voltage rating.
Mfr Part #:

W68-X2Q12-3

Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity W68-X2Q12-3 is a 2-pole magnetic hydraulic delay circuit breaker. It features a 3A current rating and a 277V voltage rating.
Stock on Request

W68-X2Q12-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating

W68-X2Q12-3 Description

Short technical summary and product information.

This TE Connectivity W68-X2Q12-3 is a magnetic hydraulic delay circuit breaker designed for panel mounting. It offers a 2-pole configuration with a current rating of 3A and a voltage rating of 277V.



The breaker type is magnetic with a hydraulic delay, providing specific trip characteristics suitable for various applications. The actuator type is a lever for easy operation.



Environmental compliance includes RoHS3 compliance and an MSL 1 rating. REACH status is unaffected. This component is suitable for applications requiring reliable overcurrent protection.



Key specifications include a 3A current rating, 277V voltage rating, and a 2-pole design. The panel mount configuration ensures straightforward integration into electrical enclosures.

W68-X2Q12-3 Quick Information

Product Type: Circuit Breaker
Canonical Name: TE Connectivity W68-X2Q12-3 Magnetic (Hydraulic Delay) Circuit Breaker
Subcategory: Magnetic (Hydraulic Delay)

W68-X2Q12-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W68-X2Q12-3 Features

  • 2-pole magnetic hydraulic delay circuit breaker.
  • Rated for 3A current and 277V.
  • Panel mount with lever actuator.
  • RoHS3 compliant.

W68-X2Q12-3 Applications

  • Suitable for circuit protection in electrical systems.
  • Used in industrial control panels for overload protection.
  • Ideal for residential and commercial electrical installations.
  • Applicable in equipment requiring 277V circuit interruption.
  • Designed for panel mount electrical circuit breakers.

W68-X2Q12-3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the W68-X2Q12-3 circuit breaker?

The current rating is 3A.

What is the voltage rating for the W68-X2Q12-3?

The voltage rating is 277V.

What type of circuit breaker is the W68-X2Q12-3?

It is a Magnetic (Hydraulic Delay) type circuit breaker.

How many poles does the W68-X2Q12-3 circuit breaker have?

It has 2 poles.

What is the mounting type for this circuit breaker?

The mounting type is Panel Mount.

Is the W68-X2Q12-3 RoHS compliant?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.
