AA1-F0-12-450-1B1-C
Littelfuse Inc.
The Littelfuse Inc. AA1-F0-12-450-1B1-C is a single-pole, magnetic (hydraulic delay) circuit breaker. It features a panel mount design and a 5A current rating.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Tape & Reel | |
| Voltage Rating |

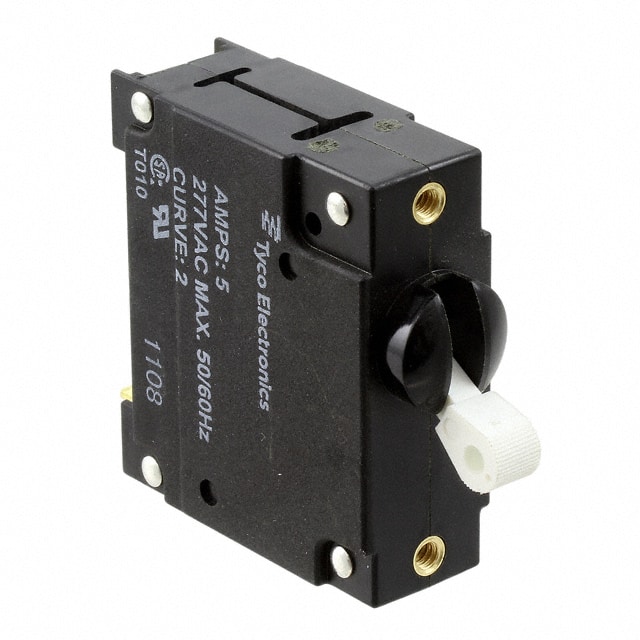

This TE Connectivity W67-X2Q12-5 is a single-pole circuit breaker designed for panel mounting. It offers a current rating of 5A and a voltage rating of 277V, utilizing a magnetic hydraulic delay mechanism for protection.
The breaker features a lever actuator for easy operation. Its construction is suitable for applications requiring reliable overcurrent protection. The component is specified with RoHS3 compliance and an MSL 1 rating.
Key electrical characteristics include a 5A current capacity and a 277V voltage limit. The magnetic hydraulic delay type ensures appropriate tripping characteristics for various load conditions. The panel mount design facilitates integration into control panels and enclosures.
5A.
277VAC.
Magnetic (Hydraulic Delay).
1 pole.
Lever.
Panel mount.
277VAC.
