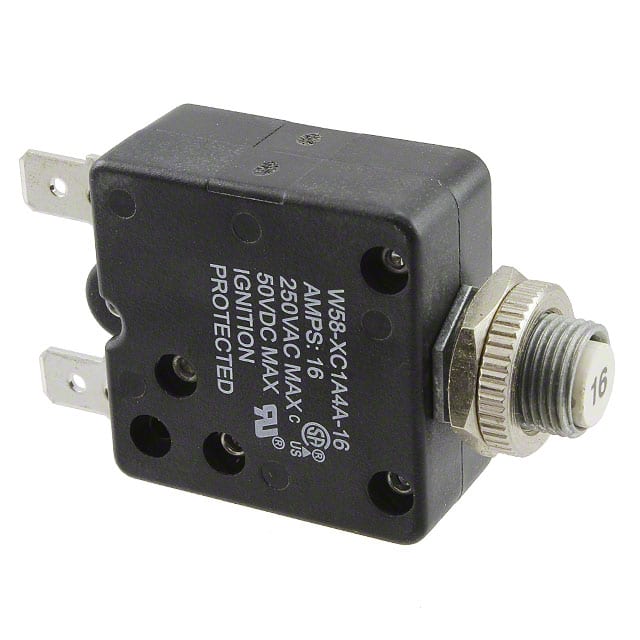

W58-XC1A4A-16 The TE Connectivity W58-XC1A4A-16 is a thermal circuit breaker rated for 16A and 250VAC. It features a panel mount design and a push-to-reset actuator.
Mfr Part #:

W58-XC1A4A-16

Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity W58-XC1A4A-16 is a thermal circuit breaker rated for 16A and 250VAC. It features a panel mount design and a push-to-reset actuator.
Stock on Request

W58-XC1A4A-16 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating

W58-XC1A4A-16 Description

Short technical summary and product information.

This TE Connectivity W58-XC1A4A-16 is a thermal circuit breaker designed for circuit protection applications. It has a current rating of 16A and a voltage rating of 250VAC, with a DC voltage rating of 50VDC.



The breaker type is thermal, and it features a push-to-reset actuator for easy operation. It is a single-pole device, suitable for various electrical systems.



Designed for panel mounting, this circuit breaker offers a secure and accessible installation. The RoHS status is compliant, and it has an MSL rating of 1, indicating unlimited moisture sensitivity.



This component is ideal for applications requiring reliable overcurrent protection, such as in industrial equipment, power supplies, and control panels.

W58-XC1A4A-16 Quick Information

Product Type: Circuit Breaker
Canonical Name: TE Connectivity W58-XC1A4A-16 Thermal Circuit Breaker
Subcategory: Thermal Circuit Breaker

W58-XC1A4A-16 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W58-XC1A4A-16 Features

  • 16A current rating for protection.
  • 250VAC voltage rating.
  • Thermal breaker type.
  • Panel mount design.
  • Push to reset actuator.

W58-XC1A4A-16 Applications

  • Ideal for overcurrent protection.
  • Suitable for control panels.
  • Used in power supply circuits.
  • Industrial equipment applications.

W58-XC1A4A-16 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the W58-XC1A4A-16 circuit breaker?

The current rating is 16A.

What is the voltage rating for this circuit breaker?

The voltage rating is 250V.

How is the W58-XC1A4A-16 circuit breaker mounted?

It is designed for panel mounting.

What type of actuator does this circuit breaker have?

It has a push to reset actuator.

How many poles does the W58-XC1A4A-16 have?

It is a single pole circuit breaker.

What is the breaker type?

The breaker type is thermal.
