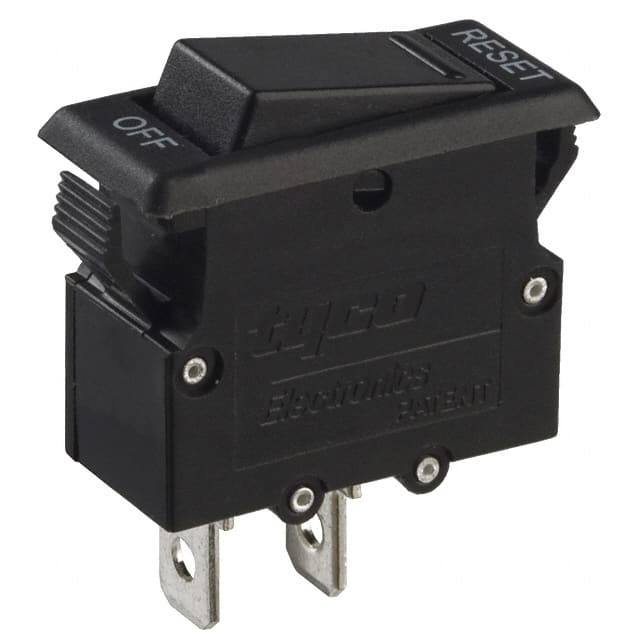

W51-A152A1-10 The TE Connectivity W51-A152A1-10 is a thermal circuit breaker designed for panel mounting. It features a 10A current rating and a 250VAC/50VDC voltage rating.
Mfr Part #:

W51-A152A1-10

Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity W51-A152A1-10 is a thermal circuit breaker designed for panel mounting. It features a 10A current rating and a 250VAC/50VDC voltage rating.
Stock on Request

W51-A152A1-10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Tape & Reel
Voltage Rating

W51-A152A1-10 Description

Short technical summary and product information.

This TE Connectivity W51-A152A1-10 is a thermal circuit breaker with a current rating of 10A and a voltage rating of 250VAC and 50VDC. It is designed for panel mounting and features a rocker actuator.



The breaker type is thermal, indicating its operation is based on heat generated by overcurrent. It has a single pole configuration.



Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status. However, these compliance statuses are considered low confidence due to a lack of verified documentation.



The part number is W51-A152A1-10, with an alternative part number PB1033-ND. The component is suitable for applications requiring reliable overcurrent protection.

W51-A152A1-10 Quick Information

Product Type: Circuit Breaker
Series: W51
Canonical Name: TE Connectivity W51-A152A1-10 Thermal Circuit Breaker
Subcategory: Thermal Circuit Breaker

W51-A152A1-10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W51-A152A1-10 Features

  • 10A current rating for overcurrent protection.
  • 250VAC and 50VDC voltage rating.
  • Panel mount design for easy installation.
  • Thermal breaker type for reliable operation.
  • Rocker actuator for user interface.

W51-A152A1-10 Applications

  • Used in power distribution systems.
  • Suitable for industrial control panels.
  • Applicable in equipment requiring protection.
  • Integrates into custom enclosures.

W51-A152A1-10 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the W51-A152A1-10?

10A.

What is the voltage rating of the W51-A152A1-10?

250VAC and 50VDC.

What type of circuit breaker is the W51-A152A1-10?

Thermal.

How many poles does the W51-A152A1-10 have?

1.

What is the actuator type of the W51-A152A1-10?

Rocker.

What is the mounting type of the W51-A152A1-10?

Panel Mount.

W51-A152A1-10 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
3120-F311-P7T1-W04D-10A
3120-F311-P7T1-W04D-10A
ETA
The E-T-A 3120-F311-P7T1-W04D-10A is a 10A thermal circuit breaker with rocker actuation, designed for panel mounting. It offers protection for motors, pumps, transformers, and cables.
View Part
