Mfr Part #:

W4231-D5

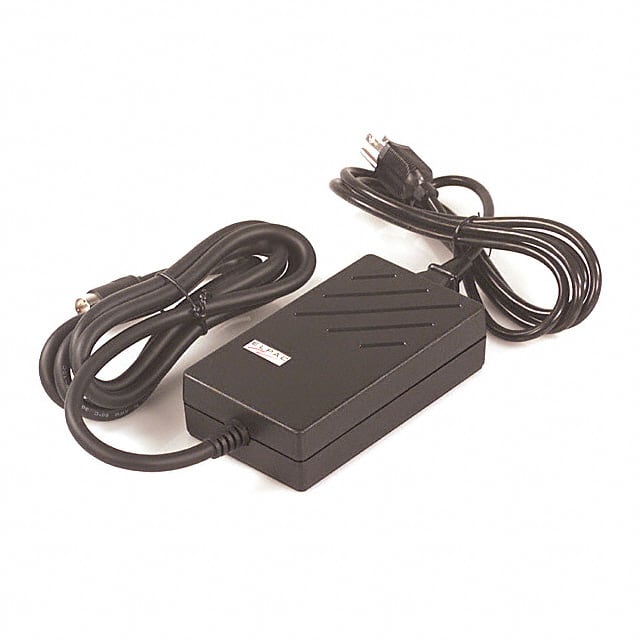

The Inventus Power W4231-D5 is a 42W AC/DC desktop adapter with 5V, 12V, and -12V outputs. It operates from 0°C to 40°C.

Stock on Request

W4231-D5 Description

Short technical summary and product information.

The Inventus Power W4231-D5 is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a total power of 42W with multiple output voltages including 5V, 12V, and -12V.

This adapter features a standard IEC 320-C14 input connector and a DIN 5-pin output connector. The operating temperature range is from 0°C to 40°C, making it suitable for various commercial environments. Its dimensions are 139.7mm x 84.6mm x 38.1mm.

The W4231-D5 is compliant with RoHS3 standards and has an MSL 1 rating. It is designed for use in North America and carries CB and CE approval agency certifications.

W4231-D5 Quick Information

Product Type: AC/DC Desktop, Wall Adapter

Canonical Name: AC/DC Desktop Adapter, 42W, 5V/12V/-12V, ITE (Commercial)

Subcategory: Desktop, Wall Adapters

W4231-D5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

W4231-D5 Features

42W total power output.
Multiple output voltages: 5V, 12V, -12V.
IEC 320-C14 input connector.
DIN 5-pin output connector.
0°C to 40°C operating temperature.

W4231-D5 Applications

Used in commercial ITE equipment.
Powers embedded systems requiring 5V logic.
Supplies +/-12V for analog circuits.
Designed for North American AC mains.

W4231-D5 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the power output of the W4231-D5 adapter?

The W4231-D5 adapter has a power output of 42W.

What are the output voltages for the Inventus Power W4231-D5?

The output voltages are 5V, 12V, and -12V.

What is the operating temperature range for this AC/DC adapter?

The operating temperature range is 0°C to 40°C.

What type of input connector does the W4231-D5 use?

It uses an IEC 320-C14 input connector.

What is the output connector type on the W4231-D5?

The output connector is a DIN, 5 Pin.

Is the W4231-D5 RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the W4231-D5?

The MSL is 1 Unlimited.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Inventus Power
Applications	ITE (Commercial)
Approval Agency	CB, CE
Cord Length	72" (1.83m)
Current	3A, 2.5A, 500mA
Form	Desktop (Class I)
Height	38.1mm (1.50")
Input Connector	IEC 320-C14
Input Type	Cord
Input Voltage	100-240 VAC
Length	139.7mm (5.50")
Operating Temperature	0°C ~ 40°C
Output Connector	DIN, 5 Pin
Power (Watts)	42 W
Region Utilized	North America
SVHC Present	Not Present
Voltage	5V, 12V, -12V
Width	84.6mm (3.33")
