| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Lead Style | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

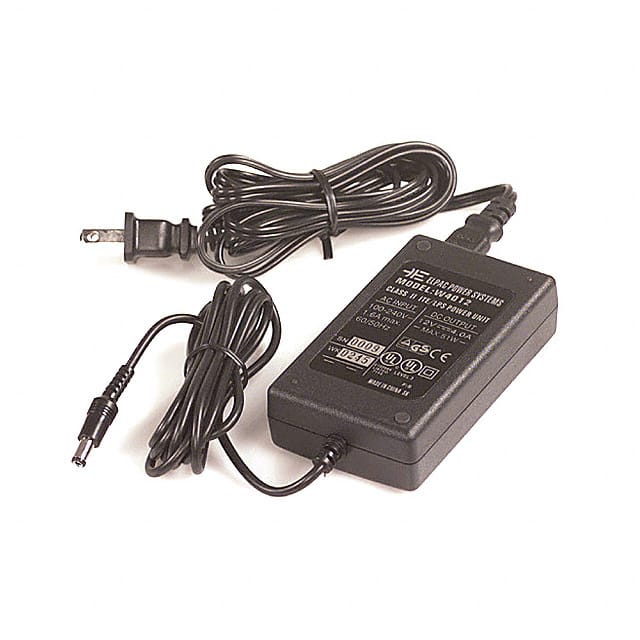

The Inventus Power W4012-760 is an AC/DC desktop adapter designed for commercial ITE applications. It provides a stable 12V output with a maximum current of 4A, delivering a total power of 48W. The adapter operates within a universal input voltage range of 90 to 264 VAC and boasts an efficiency of 85%.
Featuring a compact desktop form factor (Class II), it measures 104.9mm x 59.9mm x 28.4mm. The output is delivered via a standard barrel plug (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. The input connection is an IEC 320-C8 connector. This adapter is CE approved and suitable for North American regions.
It operates within an ambient temperature range of 0°C to 40°C. Compliance includes RoHS3, REACH Unaffected, and MSL 1. The input type is a cord, making it convenient for various setups.
The W4012-760 adapter provides a 12V output voltage and a maximum current of 4A.
The Inventus Power W4012-760 has a power rating of 48W.
The operating temperature range for the W4012-760 is 0°C to 40°C.
The W4012-760 uses a Barrel Plug with dimensions of 2.5mm I.D. x 5.5mm O.D. x 9.5mm.
Yes, the W4012-760 is RoHS3 Compliant.
