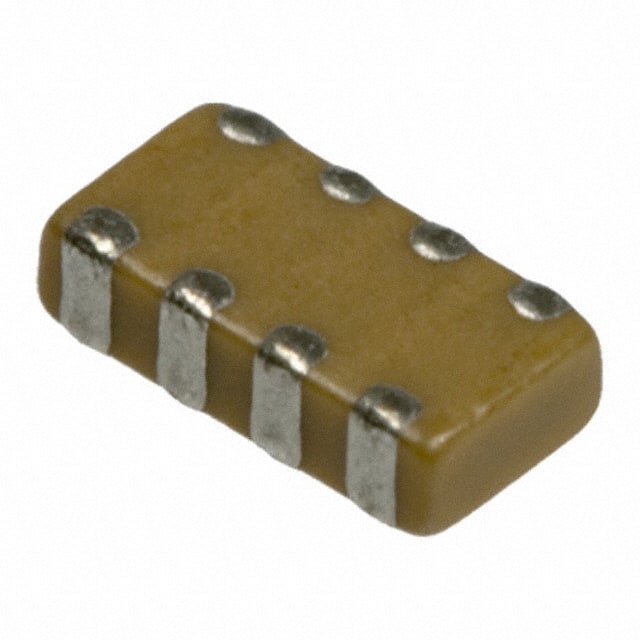

W3L16D225MAT1A Kyocera AVX W3L16D225MAT1A is an MLCC capacitor with 2.2µF capacitance, 6.3V rated voltage, X5R temperature coefficient, and 0612 package. It features low ESL for decoupling applications.
Mfr Part #:

W3L16D225MAT1A

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
Kyocera AVX W3L16D225MAT1A is an MLCC capacitor with 2.2µF capacitance, 6.3V rated voltage, X5R temperature coefficient, and 0612 package. It features low ESL for decoupling applications.
✓ Total Stock: 84 pcs
$ Price Range: $0.68

W3L16D225MAT1A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
84 pcs
On Request
84 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

W3L16D225MAT1A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dissipation Factor
Features
Insulation Resistance
Length
Mounting Type
Operating Temperature
Tape & Reel
Temperature Coefficient
Termination Finish
Thickness (Max)
Tolerance
Voltage
Width
View Similar Products (0)

W3L16D225MAT1A Description

Short technical summary and product information.

The Kyocera AVX W3L16D225MAT1A is an Inter-Digitated Capacitor (IDC) designed for low equivalent series inductance (ESL). It is part of the IDC family from Kyocera AVX, used for semiconductor package and board level decoupling.



Key specifications: capacitance 2.2µF with ±20% tolerance, rated voltage 6.3V, X5R dielectric, operating temperature -55°C to 85°C. Dissipation factor 6.5% max and insulation resistance 100,000MΩ min.



Package: 0612 (1632 Metric) surface mount, dimensions 1.60mm x 3.20mm, max thickness 0.95mm. Termination is plated nickel and tin, RoHS3 compliant. Available on tape and reel (7" or 13").



Applications: bypass and decoupling, especially for high-speed circuits above 300MHz. Suitable for CPUs, GPUs, ASICs, and ASSPs. Low ESL reduces capacitor count and saves board space.

W3L16D225MAT1A Quick Information

Product Type: MLCC Capacitor
Series: IDC
Canonical Name: Kyocera AVX W3L16D225MAT1A, 2.2µF, 6.3V, X5R, 0612 MLCC
Subcategory: Inter-Digitated Capacitor (IDC)

W3L16D225MAT1A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W3L16D225MAT1A Estimated Pricing

Qty Low High
4,000+ $0.68 $0.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

W3L16D225MAT1A Features

  • Low ESL Inter-Digitated Capacitor for decoupling.
  • 2.2µF capacitance with 6.3V rated voltage.
  • X5R dielectric with -55°C to 85°C range.
  • Surface mount 0612 package with low profile.
  • RoHS3 compliant with plated Ni/Sn termination.

W3L16D225MAT1A Applications

  • Decoupling for CPU, GPU, and ASIC packages.
  • Board level decoupling for high-speed circuits.
  • Power delivery network decoupling above 300MHz.
  • Bypass capacitors in organic and ceramic substrates.

W3L16D225MAT1A FAQs

6 frequently asked questions generated from this part’s specifications.
What is the capacitance value of the W3L16D225MAT1A?

2.2 µF with ±20% tolerance.

What is the rated voltage of this capacitor?

6.3V.

What temperature coefficient does the W3L16D225MAT1A have?

X5R, with operating temperature range -55°C to 85°C.

What is the package size and case code?

0612 (1632 Metric), dimensions 1.60mm x 3.20mm, max thickness 0.95mm.

What is the dissipation factor of the W3L16D225MAT1A?

6.5% maximum at ≤6.3V.

What is the insulation resistance?

100,000 MΩ minimum at +25°C and rated voltage.
