| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,620 pcs
|
4620 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,325 pcs
|
2325 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance | |
| Circuit Type | |
| Dielectric Material | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Capacitors | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage | |
| Width |

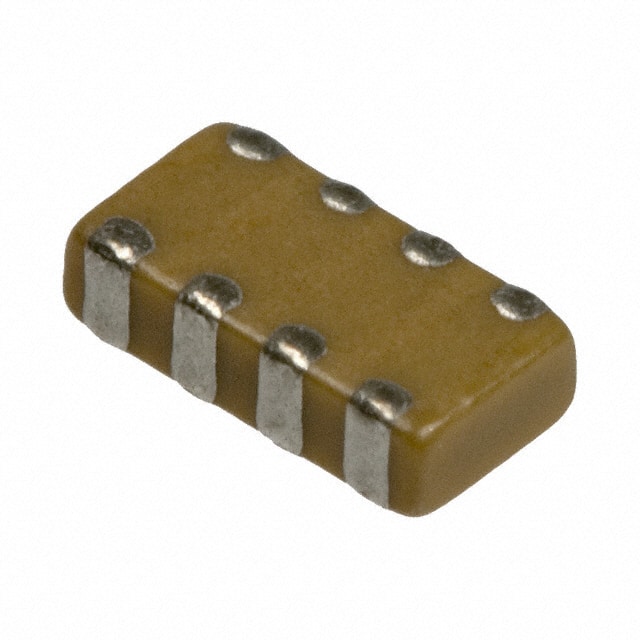

The Kyocera AVX W3A4YC104KAT2A is a ceramic capacitor array containing four isolated 0.1 µF capacitors. Each capacitor is rated for 16 V DC with a tolerance of ±10% and uses X7R dielectric material. The X7R temperature coefficient provides stable capacitance over a wide temperature range.
The array is housed in a 0612 (1632 Metric) surface mount package measuring 3.20 mm by 1.60 mm with a height of 1.35 mm. This integrated package reduces board space and placement costs compared to using four discrete MLCCs. The isolated circuit type allows each capacitor to be used independently in the circuit.
This component is suitable for general-purpose filtering, decoupling, and bypass applications where multiple capacitors are needed in close proximity. The surface mount design supports automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.27 | $0.27 |
| 10+ | $0.11 | $0.11 |
| 100+ | $0.10 | $0.10 |
| 500+ | $0.08 | $0.08 |
| 1,000+ | $0.07 | $0.07 |
| 2,000+ | $0.07 | $0.07 |
| 4,000+ | $0.06 | $0.06 |
| 8,000+ | $0.05 | $0.05 |
| 24,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Each capacitor in the array is 0.1 µF.
The rated voltage is 16 V.
The tolerance is ±10%.
The temperature coefficient is X7R.
The array contains 4 isolated capacitors.
The package is 0612 (1632 Metric) with dimensions 3.20 mm x 1.60 mm x 1.35 mm.
RoHS3 compliant (unverified).
